DICOM is the interoperability contract for imaging
DICOM matters because it standardizes both the medical-imaging object and the services used to store, query, print, and exchange it. That combination lets modalities, archives, viewers, and downstream analytics systems share one study without inventing a private contract each time.
Architecturally, DICOM sits between imaging devices and the rest of the clinical estate. HL7 and FHIR carry order context, demographics, and reports, but DICOM remains the dominant standard for the pixel-bearing object itself plus the imaging-specific workflows around it.

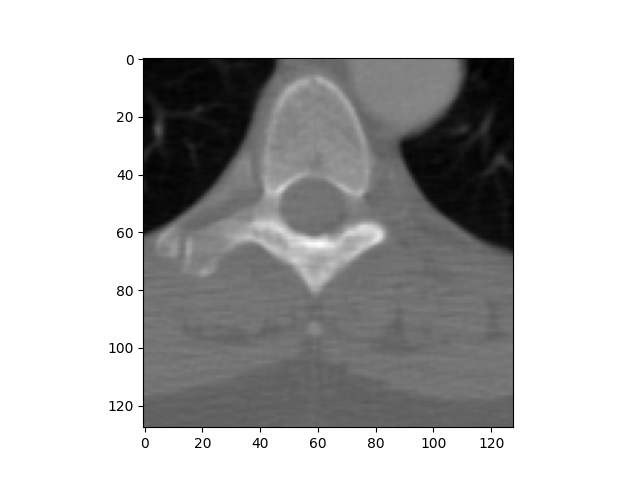

For a beginner, this is the easiest mental anchor: DICOM is not an abstract interface standard floating above imaging. It is the format and service model that lets one real CT, MR, ultrasound, or X-ray object move from acquisition into archive, viewing, and downstream analytics without losing its clinical context.
Where DICOM sits in the imaging lifecycle
Loading diagram...
Do not reduce DICOM to a file extension
If a team talks about ".dcm files" without discussing SOP Classes, transfer syntaxes, associations, or query workflows, they are only seeing part of the problem.
DICOM Part 1 Chapter 6: Overview of the DICOM standard
Official overview of how DICOM is organized into information objects, service classes, communication, and media-storage parts.
Read the standard overviewADHA DICOM overview
Australian Digital Health Agency summary of DICOM as an imaging-interoperability standard in the broader digital-health ecosystem.
Read the Australian overviewThe real-world model is hierarchical
DICOM organizes imaging data around a hierarchy that starts with the patient and narrows down to one concrete instance. That hierarchy is what allows archive indexing, hanging protocols, migration validation, and study-level access control to behave predictably.
Patient to instance hierarchy
Loading diagram...
How the hierarchy maps to operations
| Level | Typical meaning | Why architects care |
|---|---|---|
| Patient | Person receiving care | Identity and consent controls often start here, but patient identifiers alone do not uniquely identify images. |
| Study | One imaging encounter or diagnostic event | Viewers, reports, and migration reconciliations often operate at study scope. |
| Series | Related objects produced by one protocol or reconstruction | Compression, retrieval, and hanging behavior often differ by series. |
| Instance | One DICOM object identified by a SOP Instance UID | Deduplication, storage commitment, and object-level repair happen here. |
DICOM Part 3: Information Object Definitions
Official specification for the information entities and composite object definitions behind the DICOM hierarchy.
Read Part 3DICOM Part 1: Introduction and overview
Overview of how the DICOM standard is structured and how its parts work together.
Read Part 1SOP classes and UIDs are the real interoperability keys
A SOP Class tells two systems what kind of DICOM object is being exchanged and what service semantics apply to it. UIDs then identify the exact study, series, instance, transfer syntax, and many other entities participating in that exchange.
Identifiers and capability markers you constantly encounter
| Concept | What it identifies | Why it matters |
|---|---|---|
| Study Instance UID | One study | Cross-system reconciliation and report linkage usually start at study scope. |
| Series Instance UID | One series within a study | Series-level retrieval and reconstruction integrity depend on it. |
| SOP Instance UID | One DICOM object | Storage commitment, deduplication, repair, and migration auditing all depend on exact uniqueness. |
| SOP Class UID | Object type plus service semantics | Conformance statements and association negotiation use it to decide support. |
| Transfer Syntax UID | Encoding and compression rules | A system can support the same SOP Class yet still fail to parse a specific transfer syntax. |
Migration rule
Do not regenerate UIDs casually during migration or de-identification. If you must replace them, do it deterministically and preserve a governed mapping so longitudinal relationships remain auditable.
DICOM Part 4: Service Class Specifications
Official reference for service classes, including how composite objects are exchanged and queried.
Read Part 4DICOM Part 3: IOD definitions
Reference for the object side of the SOP pairing and the attributes each object class carries.
Review the object definitionsKnowledge Check
