Data Model & Transfer Syntax

DICOM objects are built from data elements identified by tags and interpreted through VR rules. A parser does not rely on field position the way many legacy message formats do; it relies on the tag dictionary, value representation, and transfer syntax.

That model is why DICOM remains machine-readable across modalities and vendors. It also explains why private attributes, sequence nesting, and bulk data need explicit handling during transformation and de-identification work.

View full size

Source: open-access review of thirty years of the DICOM standardLast verified: 2026-03-11

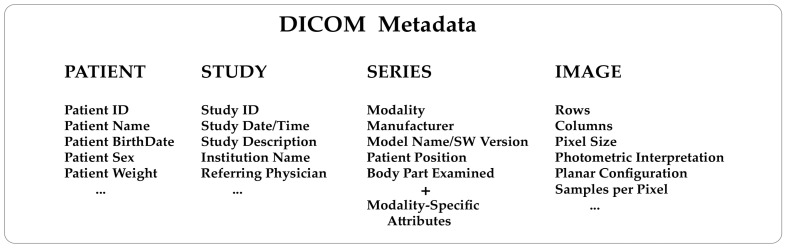

That grouping matters operationally. Architects often first encounter DICOM as a wall of hexadecimal tags, but the tags are not random. They cluster around patient identity, study context, series grouping, and image-level acquisition details, which is why downstream indexing and retrieval can follow stable clinical scopes.

DICOM Part 10 defines the file format used for media interchange and ordinary file storage. It adds a preamble, the DICM prefix, and file meta information ahead of the actual data set so software can identify the object and determine how to parse it.

That boundary is why file-inspection and migration tooling should parse Group 0002 explicitly rather than guessing from file extensions or assuming the data-set encoding applies to the whole file. It also explains why provenance fields such as Application Entity Titles can appear in file-meta headers even though they describe network history rather than clinical content.

A Transfer Syntax tells the receiver how to parse the data set and, when relevant, how the pixel data has been compressed or encapsulated. Two systems can both claim support for a SOP Class and still fail to interoperate if they do not share a compatible transfer syntax.

This is why migration and cloud-ingestion programs should inventory transfer syntaxes early. If a destination service transcodes, strips, or rejects a syntax family, that becomes a functional design decision rather than a purely storage concern.

That compatibility path is where many projects underestimate the work. A transcode is not just a storage optimization. It can alter decoder obligations, returned media types, cache behavior, and the exact object fingerprints used for migration reconciliation.
