A VNA exists to separate archive stewardship from application churn
A vendor neutral archive is the part of the imaging platform that is supposed to outlive viewer refreshes, PACS replacements, and site acquisitions. Its job is to preserve clinically usable imaging data without forcing every downstream application to come from the same vendor.
That is why a VNA sits at the center of enterprise imaging strategy. It has to preserve image objects, maintain index quality, expose standards-based retrieval paths, and keep the authoritative archive durable even when reading workstations, worklists, or workflow tools change.
Neutral archive as the durable center of the imaging estate
Loading diagram...
Medical imaging system architecture
AWS healthcare architecture guidance for PACS and VNA workloads, including application tiers, metadata stores, retrieval paths, and archive storage.
Read the AWS imaging architecture guidanceIHE MIMA supplement
IHE Radiology supplement focused on multiple image manager or archive behavior, including centralized long-term archive patterns.
Read the MIMA supplementNeutrality is an operating model, not a promise to avoid all transformation
A VNA still performs work. It may normalize identifiers, coerce selected DICOM attributes, publish DICOMweb access, feed cross-enterprise exchange, and drive retention policies. What matters is that those controls are explicit and standards-aware rather than hidden inside one PACS implementation.
How common archive roles differ
| Layer | Primary concern | Typical weakness |
|---|---|---|
| PACS-centric archive | Immediate reading workflow for one application stack | Harder to preserve neutrality when the PACS changes |
| VNA | Durable enterprise archive plus standards-aware retrieval | Still fails if metadata quality and governance are weak |
| Enterprise imaging platform | Broader image, document, and workflow ecosystem | Can become vague unless archive, identity, and exchange boundaries stay explicit |
Design implication
Treat neutrality as the ability to preserve authoritative studies, identifiers, and access contracts across product turnover. Do not mistake cheap storage alone for a neutral archive strategy.
DICOM Part 18: Web services
Official DICOMweb specification for web-native search, retrieve, and store behavior that many modern VNAs expose.
Read DICOM Part 18XDS.b integration profile
IHE IT Infrastructure guidance for registry-repository exchange patterns that often sit alongside enterprise imaging archives.
Read the XDS.b profile overviewCentralized archives still need workflow and identity contracts
A common mistake is to describe the VNA as though it sits outside the imaging workflow entirely. In reality, centralized archives still have to behave like imaging actors in a standards ecosystem. They receive studies from local PACS, handle multiple assigning authorities, and stay consistent with order and reconciliation behavior.
IHE MIMA is useful here because it explicitly describes multi-enterprise long-term archives, transactions between image manager or archive actors, and the fact that centralized archives must cope with patient identifier cross-referencing rather than assuming one clean enterprise domain.

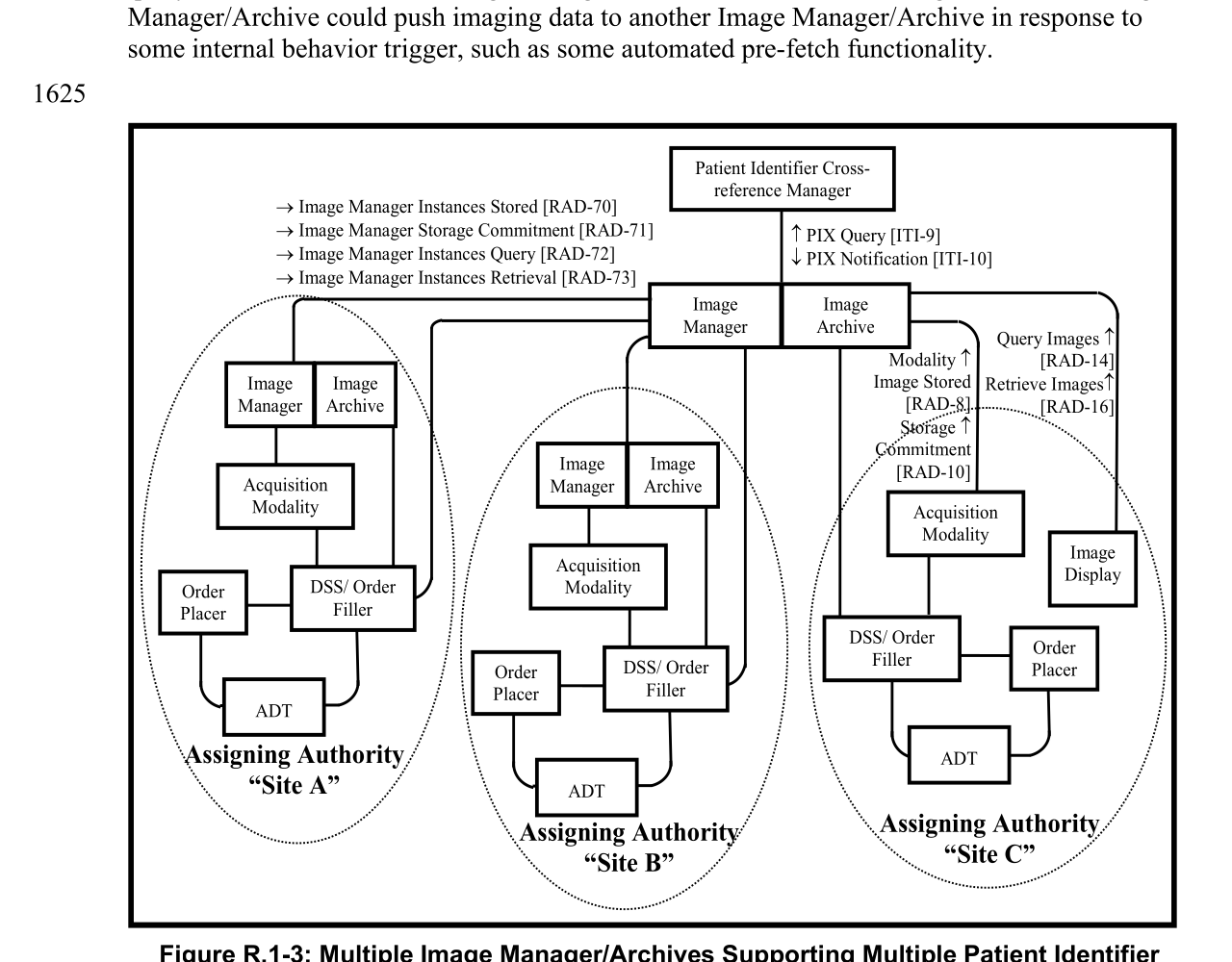

Centralized archive in a multi-site imaging network
Loading diagram...
IHE MIMA supplement
The supplement explicitly frames centralized multi-enterprise long-term archives as imaging actors that must manage transactions and multiple assigning authorities.
Read the MIMA centralized-archive guidanceKnowledge Check
Test your understanding with this quiz. You need to answer all questions correctly to mark this section as complete.
