State Machine Design with AWS Step Functions
The entire lifecycle of a radiology order is fundamentally a massive, event-driven state machine transitioning through phases: ordered, scheduled, arrived, imaged, dictated, transcribed, signed, and billed.
This is the operational picture underneath the modern cloud workflow. Step Functions can orchestrate the same lifecycle, but the clinical dependencies still come from the order placer, scheduler, modality, image archive, and reporting path shown in the IHE workflow.
- AWS Step Functions: Serverless workflow orchestration integrating with multiple AWS services. Defined using Amazon States Language (ASL).
- Flow States vs Task States: Flow states control execution logic (Choice, Wait, Parallel). Task states represent units of work (Lambda trigger, DynamoDB update).
- AWS X-Ray: Deeply integrated for distributed tracing to analyze and debug requests traveling through the architecture.
Radiology Patient Encounter State Machine
Loading diagram...
Step Functions State Types Overview
AWS Step Functions provides eight fundamental state types, each serving a specific purpose in workflow orchestration. Understanding when to use each state type is critical for building efficient, maintainable workflows.
Step Functions State Types Overview
Loading diagram...
Step Functions State Types and Use Cases
| State Type | Purpose | RIS Use Case |
|---|---|---|
| **Task** | Execute a unit of work (Lambda, SDK call) | Transform HL7 to FHIR, update DynamoDB, send SNS notification |
| **Choice** | Conditional branching based on input | Route based on procedure type (CT vs MRI vs X-Ray) |
| **Wait** | Pause execution for duration or timestamp | Wait 24 hours for radiologist assignment, wait for report deadline |
| **Pass** | Transform input without executing work | Add metadata, restructure JSON payload |
| **Map** | Iterate over array items in parallel | Process multiple DICOM series, batch generate reports |
| **Parallel** | Execute multiple branches simultaneously | Notify patient AND provider simultaneously, update multiple systems |
| **Succeed** | Stop execution successfully | Workflow completion marker |
| **Fail** | Stop execution with error | Critical validation failure, unrecoverable error |
ASL State Machine Definition Example
The following Amazon States Language (ASL) JSON definition demonstrates a complete patient encounter workflow with Task, Choice, and Wait states:
ASL State Machine: Patient Encounter Workflow
Structured JSON example rendered with depth controls for easier inspection.
Click on an annotation to highlight it in the JSON
Execution History Retention
Step Functions Standard workflows retain execution history for 90 days. This enables comprehensive auditing, debugging, and compliance reporting for healthcare workflows. Express workflows retain history for 7 days unless extended with CloudWatch Logs.
Serverless Workflow Orchestration - AWS Step Functions
Coordination of distributed applications as visible state machines.
Explore Step FunctionsLearn About State Machines in Step Functions
Detailed documentation on ASL and state machine design patterns.
Read AWS DocumentationAmazon States Language Reference
Complete reference for ASL syntax, states, and fields.
View ASL ReferenceError Handling Patterns
Robust error handling is critical for healthcare workflows. Step Functions provides built-in retry and catch mechanisms with exponential backoff, error classification, and fallback patterns.
Retry Configuration with Exponential Backoff
Transient errors like DynamoDB throttling, Lambda timeouts, or network issues should be handled automatically with retry policies. Exponential backoff prevents overwhelming downstream services during recovery.
ASL Retry/Catch Configuration with Exponential Backoff
Structured JSON example rendered with depth controls for easier inspection.
Click on an annotation to highlight it in the JSON
SQS Visibility Timeout Tuning
When integrating SQS with Step Functions, ensure the visibility timeout exceeds the maximum workflow execution time. If a workflow takes 5 minutes but visibility timeout is 2 minutes, the message becomes visible again and may be processed twice, violating idempotency.
Fallback Workflow Patterns
When primary workflows fail, fallback patterns ensure graceful degradation. Common patterns include switching to manual processing queues, sending alerts to operations teams, or routing to alternative processing paths.
Error Handling Flow with Fallback Pattern
Loading diagram...
Idempotency in Distributed Workflows
Healthcare workflows MUST be idempotent. If a workflow executes twice due to retries or replays, the outcome should be identical. Use idempotency tokens (patient ID + order ID + timestamp hash) to prevent duplicate billing claims or duplicate patient notifications.
Step Functions Error Handling
Comprehensive guide to retry and catch configurations.
Read Error Handling DocsAWS Lambda Error Handling Best Practices
Lambda-specific error handling and retry strategies.
View Lambda DocsStandard versus Express Workflows
Architectural best practices for RIS development revolve around securely nesting Express workflows inside Standard workflows.
| Workflow Type | Duration Limit | RIS Application Fit |
|---|---|---|
| Standard Workflows | Up to 1 Year^[AWS Step Functions Quotas & Limits](https://docs.aws.amazon.com/step-functions/latest/dg/limits.html) | The overarching patient encounter (order to final paid claim). Long-running, non-idempotent process. |
| Express Workflows | Maximum 5 Minutes^[AWS Step Functions Quotas & Limits](https://docs.aws.amazon.com/step-functions/latest/dg/limits.html) | High-speed event processing (e.g., MPPS status updates, emitting EventBridge events, verifying billing). |
Express Workflow 5-Minute Timeout
Express workflows have a hard 5-minute timeout limit. Design nested Express workflows to complete sub-5-minute tasks. For longer operations, break into multiple Express executions or use Standard workflows.
Nested Workflow Architecture
Nested Workflow Pattern: Standard + Express
Loading diagram...
For instance, the overarching patient encounter is managed by a parent Standard workflow. When a patient scan completes and the MPPS message is received, the Standard workflow triggers a nested child Express workflow. This Express workflow executes a series of high-speed, idempotent API calls: it updates the DynamoDB state table, emits a status event via EventBridge to the referring physician's EHR, and invokes an AWS Lambda function to verify immediate procedural billing codes.
Cost Optimization Through Workflow Design
Express workflows cost $1.00 per 1 million requests while Standard workflows cost $25.00 per 1,000 state transitions. For high-volume, short-duration tasks like MPPS processing (thousands per day), Express workflows provide 25x cost savings.
Workflow Cost Comparison (Monthly Estimate for 100K Executions)
| Scenario | Standard Cost | Express Cost | Savings |
|---|---|---|---|
| MPPS Processing (10 states) | $25,000 | $100 | 99.6% |
| EventBridge Routing (5 states) | $12,500 | $50 | 99.6% |
| Patient Encounter (200 states) | $5,000 | N/A (exceeds 5 min) | N/A |
Circuit Breaker Pattern
Implement circuit breakers for downstream dependencies. If a clearinghouse API fails 5 times in 1 minute, open the circuit and route claims to a manual review queue for 15 minutes before attempting recovery. This prevents cascade failures.
Best practices for Step Functions
Architecting for scale and resilience within Step Functions.
Read Best PracticesAWS Step Functions Developer Guide
Complete documentation for building serverless workflows.
View DocumentationServerless Workflow Patterns
Collection of serverless workflow patterns and Step Functions examples.
Explore PatternsASL Map State for Batch Processing
Map states enable parallel processing of array items, perfect for batch radiology operations like processing multiple DICOM series or generating reports for multiple procedures.
ASL Map State: Parallel Radiology Report Generation
Structured JSON example rendered with depth controls for easier inspection.
Click on an annotation to highlight it in the JSON
The Map state above processes up to 10 DICOM series in parallel (MaxConcurrency: 10). Each series goes through report generation, S3 storage, and PACS metadata update. Results are written to S3 for audit trails.
Map State Concurrency Limits
Map states support up to 40 concurrent iterations for Standard workflows and unlimited concurrency for Express workflows (subject to account limits). Tune MaxConcurrency based on downstream service capacity.
Amazon EventBridge Integration
Amazon EventBridge provides serverless event bus for decoupled event-driven architectures. RIS components emit events that trigger downstream workflows, notifications, and data synchronization.
EventBridge Event Pattern
Event patterns define which events trigger rules. The following pattern captures radiology workflow state changes:
EventBridge Event Pattern: RIS State Changes
Structured JSON example rendered with depth controls for easier inspection.
Click on an annotation to highlight it in the JSON
EventBridge Event Flow
EventBridge Event Flow Architecture
Loading diagram...
EventBridge Event Archive and Replay
EventBridge can archive events for up to 6 months. This enables replaying historical events for debugging, reprocessing failed workflows, or auditing compliance. Enable archival on production event buses.
EventBridge Schema Registry
Schema Registry provides event schema discovery and code binding generation. Define schemas for RIS events to enable TypeScript type safety:
EventBridge Schema: PatientOrderReceived
Structured JSON example rendered with depth controls for easier inspection.
Click on an annotation to highlight it in the JSON
Use the Schema Registry to generate TypeScript bindings automatically:
// Generated from EventBridge Schema Registry
export interface PatientOrderReceivedEvent {
version: string;
id: string;
'detail-type': 'PatientOrderReceived';
source: 'com.healthcare.ris.workflow';
account: string;
time: string;
region: string;
resources: string[];
detail: {
orderId: string;
patientId: string;
mrn: string;
facilityId: string;
modality: 'CT' | 'MRI' | 'XRay' | 'Ultrasound' | 'Nuclear' | 'PET';
priority: 'ROUTINE' | 'URGENT' | 'STAT';
orderDate: string;
procedureCode: string;
diagnosisCodes: string[];
orderingPhysician: {
npi: string;
name: string;
};
};
}
// Lambda handler with typed event
export const handler = async (
event: PatientOrderReceivedEvent
): Promise<void> => {
const { orderId, patientId, modality } = event.detail;
// Type-safe access to event properties
console.log(`Processing order ${orderId} for patient ${patientId} (${modality})`);
// Process order...
};Amazon EventBridge Documentation
Complete guide to event-driven architectures with EventBridge.
View EventBridge DocsX12 EDI Integration
Healthcare billing relies on ANSI ASC X12N EDI standards. The 837P (Professional Claim) and 835 (Remittance Advice) are critical for radiology revenue cycle management.
X12 837P Professional Claim Structure
The 837P claim contains patient information, provider details, procedure codes (CPT), diagnosis codes (ICD-10), and charges. Here is a simplified sample:
ISA*00* *00* *ZZ*SENDER_ID *ZZ*RECEIVER_ID *260101*1200*^*00501*000000001*0*T*:~
GS*HC*SENDER_ID*RECEIVER_ID*20260109*1200*1*X*005010X222A1~
ST*837*0001*005010X222A1~
BHT*0019*00*0123456789*20260109*1200*CH~
NM1*41*2*HOSPITAL RADIOLOGY*****XX*1234567890~
NM1*40*2*INSURANCE COMPANY*****PI*98765~
NM1*85*2*RADIOLOGY GROUP*****XX*9876543210~
NM1*82*1*DOE*JOHN****XX*1234567890~
NM1*MR*1*PATIENT*TEST****MI*MRN123456~
DMG*D8*19800115*M~
CLM*CLM001*1500***11:B:1*Y*A*Y*I~
DTP*472*D8*20260109~
REF*6R*ACCESSION123~
HI*BK:R93.09~
LX*1~
SV1*HC:71040*1500*UN~
DTP*472*D8*20260109~
REF*6R*ACCESSION123~
SE*20*0001~
GE*1*1~
IEA*1*000000001~HIPAA EDI Transaction Requirements
HIPAA mandates standardized EDI transactions under 45 CFR Part 162. All covered entities must use X12 837 for claims, 835 for remittance, 270/271 for eligibility, and 276/277 for claim status. Non-compliance risks penalties up to $1.5M per violation category per year.
X12 835 Remittance Advice Structure
The 835 remittance advice explains claim adjudication results, including payments, adjustments, and denials:
ISA*00* *00* *ZZ*INSURER_ID *ZZ*PROVIDER_ID *260110*1400*^*00501*000000002*0*T*:~
GS*HA*INSURER_ID*PROVIDER_ID*20260110*1400*2*X*005010X221A1~
ST*835*0002*005010X221A1~
BPR*H*1200*C*ACH*CCD*0112345678*D*1234567890*DA*9876543210*01*1234567890~
TRN*2*TRACE123*9876543210~
DTM*8*20260110~
N1*PR*INSURANCE COMPANY*FI*12-3456789~
N1*PE*RADIOLOGY GROUP*XX*9876543210~
LX*1~
CLP*CLM001*1*1200*1500*12*987654321~
CAS*CO*45*300~
CAS*PR*1*0~
PLB*PROVIDER_ID*20260110*ADJ:-300~
SE*15*0002~
GE*1*2~
IEA*1*000000002~EDI Claim Processing Pipeline
X12 EDI Claim Processing Pipeline
Loading diagram...
The pipeline validates X12 syntax, submits to clearinghouses via SFTP or API Gateway, receives acknowledgments (999/TA1), and processes 835 remittances for payment posting.
Lambda Handler for EDI Processing
import {
StepFunctionsClient,
SendTaskSuccessCommand
} from '@aws-sdk/client-step-functions';
import {
X12Validator,
X12Parser,
X12Generator
} from 'x12-parser'; // Hypothetical library
import { SQSRecord } from 'aws-lambda';
const stepFunctions = new StepFunctionsClient({});
interface X12ProcessingInput {
claimData: {
patientId: string;
procedureCodes: string[];
diagnosisCodes: string[];
charges: number;
providerNPI: string;
};
taskToken: string;
}
export const handler = async (
event: X12ProcessingInput
): Promise<void> => {
const { claimData, taskToken } = event;
try {
// Step 1: Generate X12 837P from claim data
const x12Generator = new X12Generator();
const x12Claim = x12Generator.generate837P({
subscriberId: claimData.patientId,
procedureCodes: claimData.procedureCodes,
diagnosisCodes: claimData.diagnosisCodes,
totalCharges: claimData.charges,
providerNPI: claimData.providerNPI,
});
// Step 2: Validate X12 syntax and business rules
const validator = new X12Validator();
const validation = await validator.validate837P(x12Claim);
if (!validation.isValid) {
throw new Error(`X12 Validation Failed: ${validation.errors.join(', ')}`);
}
// Step 3: Submit to clearinghouse via API Gateway
const response = await fetch(
'https://api.clearinghouse.example.com/claims',
{
method: 'POST',
headers: {
'Content-Type': 'text/plain',
'Authorization': `Bearer ${process.env.CLEARINGHOUSE_API_KEY}`,
},
body: x12Claim,
}
);
if (!response.ok) {
throw new Error(`Clearinghouse submission failed: ${response.status}`);
}
const submissionResult = await response.json();
// Step 4: Report success back to Step Functions
await stepFunctions.send(new SendTaskSuccessCommand({
taskToken,
output: JSON.stringify({
claimId: submissionResult.claimId,
submissionDate: new Date().toISOString(),
status: 'SUBMITTED',
}),
}));
} catch (error) {
const errorMessage = error instanceof Error ? error.message : 'Unknown error';
// Report failure to Step Functions
await stepFunctions.send(new SendTaskSuccessCommand({
taskToken,
output: JSON.stringify({
status: 'FAILED',
error: errorMessage,
timestamp: new Date().toISOString(),
}),
}));
throw error; // Re-throw for Step Functions catch block
}
};X-Ray Sampling Rates for Cost Optimization
AWS X-Ray traces incur costs. For high-volume workflows, configure sampling rules to trace only 5-10% of requests in production, but 100% of errors. This balances observability with cost.
AWS HealthLake - FHIR Data Store
AWS FHIR data store for healthcare data interoperability and analytics.

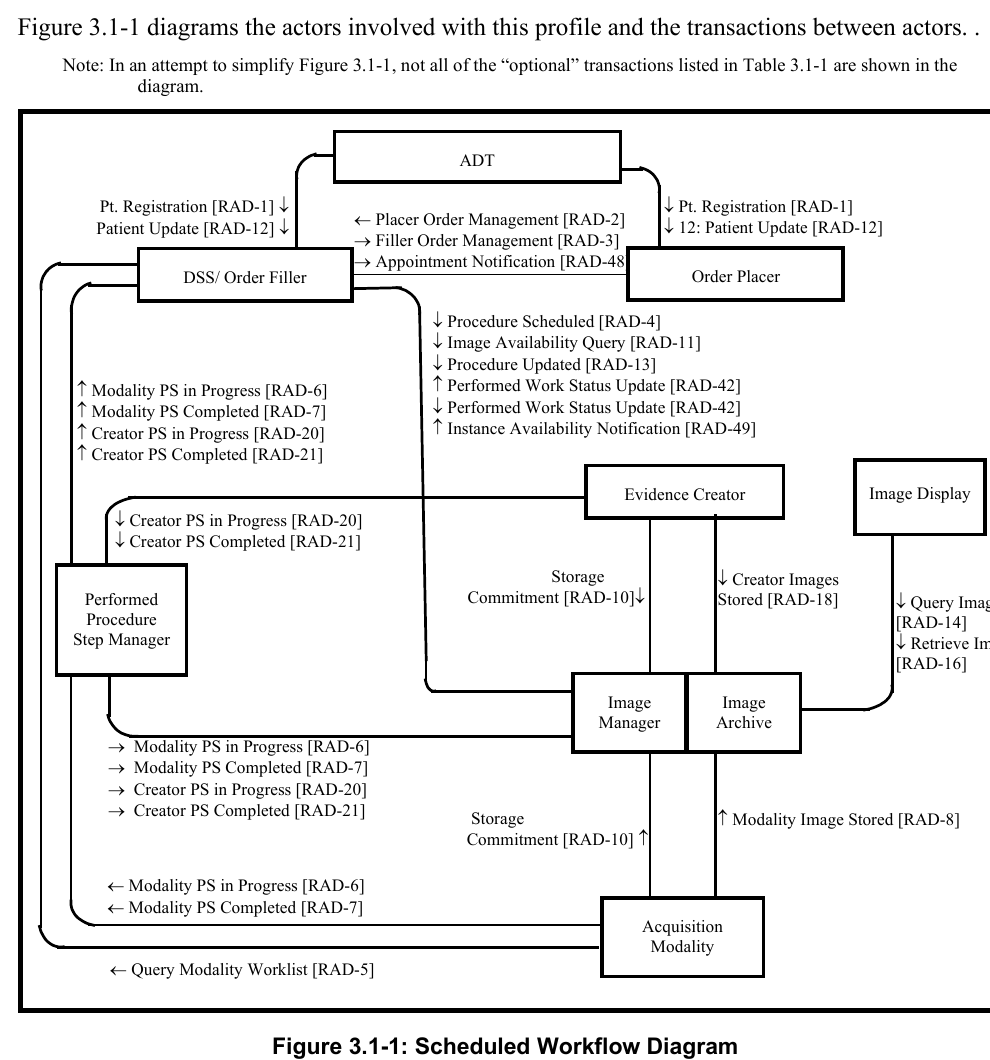

View AWS HealthLakeIHE Scheduled Workflow Profile
Official actor and transaction specification for the radiology scheduled workflow used by order management, modality worklists, MPPS, and image storage.
View IHE Workflow SpecX12 837 Health Care Claim Transaction Set
Official X12 description of the 837 transaction set used for healthcare claims and encounter billing.
View 837 TransactionCMS Administrative Simplification
CMS overview for HIPAA administrative simplification and transaction standardization.
View CMS GuidanceKnowledge Check
Test your understanding with this quiz. You need to answer all questions correctly to mark this section as complete.
