Fundamentals

The modern healthcare landscape is undergoing a profound digital transformation, heavily influenced by the exponential growth of medical imaging data and the urgent need for interoperable, scalable, and intelligent systems.

The Evolution from On-Premises to Cloud-Native

At the heart of the radiology department's administrative and clinical operations is the Radiology Information System (RIS). Traditionally deployed as rigid, on-premises monolithic applications, the RIS serves as the foundational workflow engine governing the complete lifecycle of a radiological encounter.

The transition of these complex systems to cloud-native architectures, specifically leveraging Amazon Web Services (AWS), represents a paradigm shift that enables unprecedented scalability, high availability, and the integration of advanced machine learning capabilities.

Core Objectives of Modern RIS

A Radiology Information System streamlines the management of medical imaging data and orchestrates multifaceted workflows including scheduling, examination tracking, study reporting, and comprehensive billing management. The overarching goal is to construct a digital backbone that reduces manual work, minimizes clinical errors, and eliminates workflow bottlenecks.

The RIS operates as the central nervous system of a radiology department. Its architecture must seamlessly accommodate diverse, high-throughput workflows while maintaining absolute data integrity and regulatory compliance. Key components include:

• Patient Scheduling & Tracking: Matches specific imaging modalities with available technologists, radiologists, and patient acuity. See quiz questions 2 and 16 for revenue impact analysis (20-40% enhancement).
• Examination Management: Automates bidirectional data exchange with imaging acquisition devices via DICOM MWL. See Interoperability for complete MWL implementation patterns.
• Results Reporting: Provides radiologists with dynamic, intelligent worklists prioritized by clinical urgency. Integrates voice recognition for real-time dictation and orchestrates the distribution of finalized reports back to the referring physician's EHR.
• Billing & Financial Management: Captures all chargeable events, translates procedures into standardized billing codes, and automates invoicing and insurance claims.

A nuanced understanding of how a RIS fits into the broader healthcare informatics ecosystem is essential for designing interoperable cloud architectures. The boundaries between different medical information systems are strictly defined by their primary custodianship of specific data domains:

Technically, the RIS is the departmental control plane. HIS owns enterprise identity and encounter state, the CIS or EHR owns longitudinal clinical context and ordering, PACS owns image storage and viewing, and the modality is the real-time acquisition endpoint. The RIS sits in the middle translating those worlds into an operational workflow that can be scheduled, tracked, billed, and audited.

Patient scheduling and tracking form the fundamental, foundational functions of any RIS platform. This is not a simple calendar function; it requires matching a specific imaging modality with an available, certified technologist, a specialized radiologist, and the patient's clinical acuity.

Advanced RIS platforms centralize this scheduling mechanism to drastically reduce manual intervention. The adoption of sophisticated RIS scheduling algorithms has been shown to enhance departmental revenues by 20 to 40 percent, depending on the specific imaging modality, by maximizing expensive resource utilization and reducing idle scanner time.

Tracking a patient's journey involves recording granular timestamps and state changes from the moment a diagnostic order is received, through patient arrival, examination initiation, examination completion, and final report delivery. This operational telemetry is vital for identifying infrastructural inefficiencies and ensuring that service-level agreements (SLAs) for diagnostic turnaround times are strictly met.

The complete radiology encounter flows through a tightly integrated sequence of systems. The following diagram illustrates the end-to-end workflow from order placement to final report distribution:

RIS Workflow State Machine

Each radiology order progresses through a well-defined state machine. Understanding these state transitions is critical for implementing proper charge capture, billing triggers, and compliance auditing:

This workflow ensures that the RIS provides the necessary clinical context, precise patient demographics, and detailed order parameters directly to the scanning equipment. This automated data transfer entirely eliminates the need for manual data entry by radiologic technologists at the scanner console, which has historically been a primary source of mismatched records, delayed diagnoses, and subsequent medical errors.

The following code examples demonstrate key implementation patterns for building a cloud-native RIS on AWS:

Example 1: RIS Workflow State Machine (TypeScript)

This TypeScript implementation defines the RIS order lifecycle as a type-safe state machine with validated transitions:

Example 2: DynamoDB Patient Tracking Table Schema

This DynamoDB example is best understood as a wide-column item collection. Each order owns a partition, each state transition is another row in that partition, and GSIs project the same items into alternate read paths such as patient history and daily operations boards.

Example 3: FHIR ServiceRequest for Radiology Order

This FHIR R4 ServiceRequest resource demonstrates the standard format for radiology imaging orders exchanged between EHR and RIS systems:

The RIS plays a critical role in the radiology department's revenue cycle. Charge capture must be triggered at precise workflow milestones to ensure accurate billing and prevent revenue leakage:

The transition to cloud-native architectures enables unprecedented scalability, high availability, and the integration of advanced machine learning capabilities. See quiz question 13 for detailed explanation of cloud-native migration goals.

Purpose-Built AWS Services for RIS

AWS does not publish a single official "RIS microservices" blueprint. A realistic cloud-native RIS is therefore best expressed as a domain design: order intake, scheduling, modality workflow, reporting, billing, audit, and analytics are separate bounded contexts, each mapped to AWS services that fit its latency, durability, and interoperability needs.

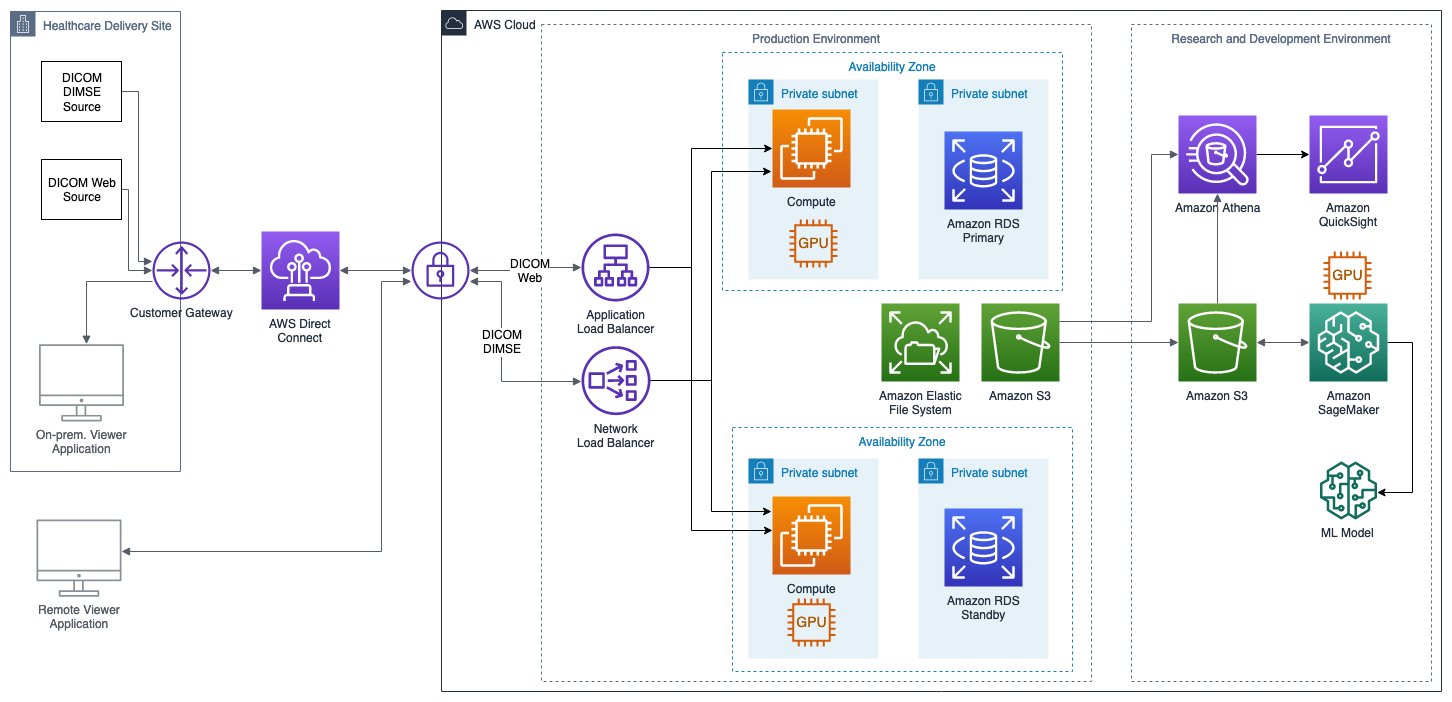

View full size

Source: AWS Healthcare Industry Lens medical imaging system architectureLast verified: 2026-03-11

The official AWS imaging diagram is broader than a RIS, which is exactly why it is useful here. A RIS is the workflow control plane, but it still has to fit cleanly into the surrounding ingest, archive, viewer, and analytics layers shown in the reference architecture.

Medical Imaging Storage Strategy

AWS HealthImaging provides a purpose-built service for storing, accessing, and analyzing medical imaging data at petabyte scale. It offers significant cost savings compared to traditional PACS storage:

• AWS HealthImaging: Store DICOM images in a cloud-native, zero-footprint viewer-compatible format with up to 75% cost reduction vs. traditional PACS.
• Amazon S3 Intelligent-Tiering: Automatically optimize storage costs by moving data between access tiers based on usage patterns.
• S3 Glacier Instant Retrieval: Archive decade-old diagnostic data with millisecond retrieval times at 68% lower cost than S3 Standard.
• AWS Lambda: Process imaging studies serverlessly with automatic scaling for burst workloads.

Video demonstration of AWS HealthImaging capabilities will be embedded here in a future update. The demo will showcase zero-footprint viewing, study comparison tools, and AI/ML integration patterns.
