Transport Methods

MLLP is the most common transport protocol for HL7 v2.x messages over TCP/IP. It provides a simple framing mechanism that allows receiving systems to identify message boundaries in a stream of data. MLLP wraps HL7 messages with special delimiter characters to mark the start and end of each message frame.

MLLP Frame Structure

Raw bytes visualization: start byte 0B, then HL7 payload bytes (for example 4D 53 48 7C 5E 7E 5C 26 7C ...), then end bytes 1C 0D.

MLLP Connection Sequence

Typical MLLP interaction opens a TCP socket, sends a framed HL7 payload, waits for a framed ACK, and then closes the connection.

MLLP Implementation Best Practices

Connection Management

• Use persistent TCP connections for high-throughput scenarios.
• Implement connection pooling for multiple concurrent interfaces.
• Set appropriate TCP keepalive intervals (typically 30-60 seconds).
• Handle connection failures gracefully with exponential backoff.

Buffer Management

• Use a circular buffer for streaming message processing.
• Set maximum message size limits (typically 10MB-100MB).
• Implement timeout detection for incomplete frames.
• Validate frame delimiters before processing message content.

Error Handling

• Log raw bytes when frame validation fails.
• Implement circuit breaker patterns for repeated failures.
• Maintain a dead-letter queue for unprocessable messages.
• Alert on connection drops and reconnection events.

Acknowledgment (ACK) messages are critical for reliable HL7 v2.x communication. They confirm receipt and communicate whether processing succeeded or failed.

Synchronous ACK Pattern

Best for low-latency, high-reliability scenarios where ordering is critical. Typical ACK timeout is 10-30 seconds with exponential backoff retries.

Asynchronous ACK Pattern

Best for high-throughput scenarios where senders continue producing while waiting for ACK tracking in a durable queue.

Common ACK Error Scenarios

Securing HL7 v2.x communications is essential for HIPAA compliance and protecting sensitive patient health information (PHI).

TLS 1.3 Requirements

Certificate Management

• Verify certificate chain to a trusted root CA.
• Check certificate expiration dates.
• Validate subject/SAN values against expected endpoints.
• Implement certificate pinning for critical interfaces.

HIPAA Compliance Requirements

Technical Safeguards (45 CFR 164.312)

• Access control: unique user IDs, emergency access, automatic logoff.
• Audit controls: log all PHI access and modifications.
• Integrity: authenticate ePHI with checksums or signatures.
• Person or entity authentication for communicating parties.
• Transmission security with TLS 1.2+ (prefer TLS 1.3).

Audit Logging Requirements

• Message send and receive timestamps.
• Source and destination endpoints.
• Message types and control IDs.
• ACK status codes.
• Error conditions and retries.
• Retention period typically six years or more.

Encryption Standards

• In transit: TLS 1.3 (minimum TLS 1.2).
• At rest: AES-256 encryption.
• Key management: FIPS 140-2 Level 2+ HSMs.
• Key rotation at least every 90 days.

Modern HL7 v2.x implementations often use cloud infrastructure for scalability, reliability, and cost-effectiveness. This section captures architecture patterns for handling MLLP traffic at enterprise scale.

MLLP -> Kinesis -> Serverless Pattern

View full size

Source: AWS Healthcare Industry Lens interoperability architecturesLast verified: 2026-03-11

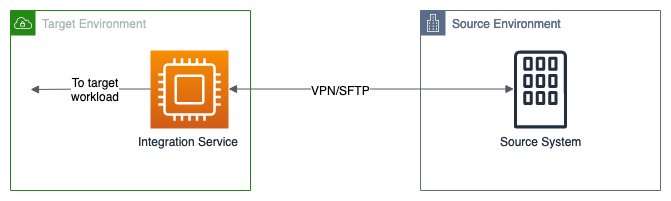

The AWS figure is deliberately simple: source system, secure network path, integration service, target workload. The CHOP diagram above is one richer realization of that same transport boundary when HL7 traffic fans into analytics and downstream processing.

1. AWS Fargate hosts Apache Camel MLLP connector to receive HL7 v2.x from patient monitors.
2. Amazon Kinesis Data Streams ingests raw HL7 messages for real-time processing.
3. Amazon Managed Flink parses HL7 messages and extracts patient vital signs.
4. Amazon Timestream stores time-series vital signs for real-time dashboards.
5. Amazon Redshift supports analytics through warehousing and materialized views.
6. Amazon S3 provides long-term archive via streaming delivery.

HAProxy Configuration for MLLP

HAProxy provides TCP load balancing for MLLP connections, enabling high availability and horizontal scaling of HL7 interface engines.

DynamoDB State Tracking

DynamoDB can track message lifecycle state to support idempotency and exactly-once processing behavior.

Processing Patterns: Lambda vs. Fargate vs. Flink

Hybrid Lower Layer Protocol (HLLP) extends MLLP by adding checksum validation to the framing layer. While MLLP provides basic message boundary detection, HLLP adds integrity verification to detect corruption during transmission.

HLLP Frame Structure with Checksum

MLLP vs HLLP Trade-offs

Synchronous MLLP communication patterns introduce significant risks in high-volume healthcare environments. Understanding these failure modes is critical for designing resilient interfaces.

Cascading Failure Scenarios

When a downstream receiver becomes slow or unresponsive, synchronous senders block waiting for ACK responses. This creates a cascade effect:

1. Receiver processing slows due to database lock or resource contention.
2. ACK responses are delayed beyond timeout thresholds.
3. Sender threads remain blocked waiting for ACKs.
4. Sender thread pool becomes exhausted.
5. Upstream systems cannot submit new messages.
6. Message queues back up across the entire integration chain.
7. Clinical workflows are disrupted (ADT updates, lab results, orders).

Thread Pool Exhaustion Pattern

Backpressure Patterns

Implement backpressure mechanisms to prevent cascading failures:

• Asynchronous send with durable queues (SQS, Kafka, RabbitMQ).
• Circuit breaker patterns with automatic fallback modes.
• Priority queues for critical message types (ADT > ORU > ORM).
• Dynamic thread pool sizing based on ACK latency metrics.
• Bulkhead isolation between interface endpoints.
• Graceful degradation with local queue spillover.

HL7 v2.x includes sequence number tracking in MSH-13 (Message Sequence Number) for message ordering and duplicate detection. Proper handling prevents data integrity issues in high-volume environments.

MSH-13 Field Structure

Lax Sequencing Timeout Pattern

In practice, strict sequence number enforcement causes issues when messages are retried or sent out of order. The "lax sequencing" pattern allows tolerance for minor sequence gaps:

• Accept messages within a configurable sequence window (e.g., ±5 messages).
• Track last processed sequence number per sending application.
• Flag out-of-sequence messages for audit review rather than rejection.
• Implement timeout-based sequence reset (e.g., reset counter after 24 hours of inactivity).
• Use MSH-10 (Message Control ID) as primary deduplication key instead of sequence numbers.

Sequence Number Best Practices

• Increment sequence numbers per unique MSH-5/MSH-3 (sending application/facility) pair.
• Reset sequence counters daily or per batch cycle.
• Log sequence gaps greater than threshold for investigation.
• Do not reject messages solely based on sequence number anomalies.
• Use MSH-10 (unique control ID) for idempotency and deduplication.

Enhanced acknowledgment patterns provide additional reliability guarantees for critical healthcare transactions. Dual acknowledgment separates transport-level receipt from application-level processing confirmation.

Commit ACK + Application ACK Pattern

Two-phase acknowledgment ensures messages are both received and processed:

1. Commit ACK (Transport Layer): Immediate acknowledgment confirming message receipt and syntactic validation.
2. Application ACK (Business Layer): Deferred acknowledgment confirming successful business processing (e.g., database commit, downstream notification).

MSH-15/MSH-16 Acknowledgment Configuration

Security Information and Event Management (SIEM) integration provides real-time monitoring and threat detection for HL7 v2.x interfaces. Healthcare systems are high-value targets requiring proactive security monitoring.

Anomaly Detection Patterns

• Unusual message volume spikes (potential DDoS or data exfiltration).
• Unexpected message types from known interfaces (e.g., ORM from ADT-only source).
• After-hours transmission patterns deviating from baseline.
• Repeated authentication failures or mTLS handshake errors.
• Messages with suspicious patient demographics (synthetic data testing in production).
• Geographic anomalies (connections from unexpected IP ranges).

Traffic Spike Monitoring

Implement threshold-based alerting for message volume anomalies:

Failed mTLS Handshake Alerts

Mutual TLS handshake failures indicate potential security threats:

• Expired or revoked client certificates.
• Certificate chain validation failures.
• Hostname/SAN mismatch attacks.
• Protocol downgrade attempts (TLS 1.3 to TLS 1.0).
• Cipher suite negotiation failures (weak cipher attempts).

Splunk Query Examples

Healthcare data security requirements vary by jurisdiction. Understanding regional compliance frameworks is essential for multi-national HL7 implementations.

Australian SMD/NASH PKI Case Study

Australia's Secure Messaging Domain (SMD) and National Authentication Service for Health (NASH) PKI infrastructure provides a model for nationwide healthcare security:

• NASH certificates provide mutual authentication for all healthcare communications.
• Healthcare Provider Identifiers (HPI-I, HPI-O, HPI-D) embedded in certificates.
• Mandatory for all My Health Record system communications.
• Certificate hierarchy: NASH CA → Organization CA → Individual certificates.
• HL7 v2.x messages must be transported over TLS with NASH certificate validation.
• Message-level digital signatures for audit non-repudiation.

Other Regional Equivalents

Compliance Checklist

• Identify all jurisdictions where patient data originates or is processed.
• Map data flow to determine applicable regulatory frameworks.
• Implement jurisdiction-specific security controls (encryption, access, audit).
• Document compliance evidence for audits (policies, procedures, logs).
• Review and update annually or when regulations change.
• Engage legal/compliance teams for cross-border data transfers.

Production MLLP implementations require careful attention to connection lifecycle, buffer management, timeout handling, and failure recovery. This section covers advanced patterns for building resilient MLLP interfaces.

Connection Lifecycle Management

Buffer Management Strategies

• Use circular buffers for streaming byte processing to avoid memory allocation overhead.
• Set maximum message size limits (typically 10MB) to prevent memory exhaustion attacks.
• Implement partial frame detection: if start block (0x0B) received but no end block (0x1C0D) within timeout, flag as incomplete.
• Pre-allocate buffer pools for high-throughput scenarios to reduce GC pressure.

Timeout and Keepalive Configuration

Circuit Breaker Pattern

Circuit breakers prevent cascading failures by stopping sends to unhealthy receivers:

• CLOSED state: Normal operation, messages flow through.
• OPEN state: After N consecutive failures, stop sending immediately and route to DLQ.
• HALF-OPEN state: After recovery timeout, send one probe message. If successful, close circuit; if failed, reopen.
• Track failure rate over sliding window (e.g., 50% failures in last 10 messages triggers open).

AWS Transfer Family provides fully managed SFTP, FTPS, and FTP servers for secure file-based HL7 batch transfers. This service is ideal for scenarios requiring batch processing, such as daily lab result summaries, billing transactions, or legacy system integrations.

Use Cases for File-Based HL7 Transport

AWS Transfer Family Architecture

1. External partner uploads HL7 batch file (e.g., daily_results.hl7) via SFTP to AWS Transfer Family.
2. Transfer Family automatically stores file in Amazon S3 bucket with server-side encryption (AES-256).
3. S3 event notification triggers AWS Lambda function to process the batch file.
4. Lambda parses HL7 messages, validates structure, and pushes individual messages to SQS for reliable processing.
5. Downstream consumers process messages from SQS, transform to FHIR if needed, and route to destination systems.
6. CloudTrail logs all SFTP operations for audit and compliance (HIPAA, SOC 2).

Security and Compliance Features

PGP Encryption for HL7 Batches

For additional security, HL7 batch files can be PGP-encrypted before SFTP upload:

• Sender encrypts HL7 batch file with recipient public PGP key.
• Encrypted file (.pgp) uploaded via SFTP to Transfer Family.
• AWS Lambda uses AWS Secrets Manager-stored private key to decrypt.
• Decrypted HL7 messages processed normally.
• Original encrypted file archived or deleted per retention policy.
