Departmental Clinical Systems

To comprehend the complex data flows within a HIS/EHR environment, solution architects must meticulously dissect the enterprise architecture into its constituent domain-specific sub-systems.

A modern hospital is an amalgamation of highly specialized clinical departments, each requiring specific software capabilities that a generic EMR module simply cannot fulfill. These sub-systems generate discrete, high-volume clinical data that must be seamlessly fed back into the central EHR repository.

The Laboratory Information System (LIS) is a highly specialized application designed to manage the complex, high-throughput workflows of pathology, microbiology, and clinical chemistry laboratories.

LIS Test Lifecycle

Key LIS Capabilities

• Receives electronic orders from the EHR
• Manages specimen barcoding and geographic tracking
• Interfaces directly with automated laboratory analyzers
• Extracts raw physiological results from hematology/chemistry machines
• Formats results into structured clinical data
• Transmits results back to EHR for physician review

LIS Integration Patterns

LIS integration with the EHR/HIS follows a well-defined order-result loop using HL7 v2 messaging standards.

1. EHR generates ORM^O01 (Order Message) when physician orders lab test
2. ORM contains patient demographics, test codes, ordering provider, urgency (STAT/routine)
3. LIS receives order, creates specimen labels with barcodes
4. LIS interfaces with analyzers via serial/TCP connections to extract raw results
5. LIS sends ORU^R01 (Observation Result) back to EHR with structured results
6. OBX segments contain test values with LOINC codes for semantic interoperability

LOINC Terminology Binding

The LIS relies heavily on precise semantic mapping using LOINC (Logical Observation Identifiers Names and Codes) to ensure specific lab values trigger appropriate clinical decision support (CDS) alerts within the broader hospital system.

• LOINC codes uniquely identify laboratory observations (e.g., 2345-7 for Glucose)
• Enables cross-system result comparison and aggregation
• Critical for CDS rules (e.g., critical value alerts, drug-lab interactions)
• Required for meaningful use and quality reporting (eCQMs)

Instrument Interfacing

LIS systems interface directly with automated laboratory analyzers from manufacturers like Roche, Abbott, Siemens, and Beckman Coulter.

• ASTM E1381/E1394 standards for bidirectional analyzer communication
• Serial (RS-232) or TCP/IP connections to instruments
• Auto-verification rules for normal results
• Manual review queue for abnormal/critical values

The Radiology Information System (RIS) manages the administrative and operational workflows specific to a radiology or imaging department.

RIS Primary Functions

• Scheduling complex imaging exams
• Tracking radiology orders from inception to fulfillment
• Managing expensive resource utilization (MRI, CT scanner availability)
• Storing text-based radiological reports and physician diagnoses

RIS-HIS Integration

The RIS interfaces heavily with the HIS to ensure that imaging procedures are correctly coded and billed, and that patient demographics remain perfectly synchronized across the hospital network.

• Receives HL7 ADT messages for patient registration updates
• Receives HL7 ORM messages for imaging order requests
• Sends HL7 ORU messages with radiology report results
• Sends HL7 DFT (Detailed Financial Transaction) for billing

DICOM Modality Worklist

RIS integrates with PACS and imaging modalities through DICOM Modality Worklist (MWL), a critical workflow component that eliminates manual data entry at the imaging equipment.

1. RIS creates scheduled procedure step with patient demographics
2. Imaging modality (CT, MRI, X-ray) queries RIS via DICOM MWL
3. Technologist selects patient from worklist on modality console
4. Patient demographics auto-populate, eliminating transcription errors
5. Modality performs exam and sends images to PACS via DICOM Storage
6. PACS confirms storage commitment back to modality

Intimately coupled with the RIS is the Picture Archiving and Communication System (PACS).

While the RIS handles the metadata, scheduling, and textual workflow of radiology, the PACS is the heavy-lifting infrastructure responsible for the secure storage, retrieval, distribution, and rendering of high-fidelity medical images.

PACS Architecture Requirements

• Massive, highly scalable storage arrays
• Optimized network topologies for multi-gigabyte transfers
• Clinical latency prevention for image retrieval
• DICOM protocol compliance for image format and transmission

RIS-PACS Workflow Integration

The RIS-PACS integration ensures seamless radiology workflow from order to diagnosis.

1. Physician orders imaging exam in EHR (HL7 ORM to RIS)
2. RIS schedules exam and creates DICOM Modality Worklist entry
3. Technologist performs exam, images sent to PACS (DICOM Storage)
4. PACS notifies RIS of completed exam (DICOM Storage Commitment)
5. Radiologist reads images on PACS workstation, dictates report
6. Radiology report sent to EHR via HL7 ORU from RIS

The Clinical Information System (CIS) acts as the direct interface for intensive clinical care.

CIS Real-Time Data Management

• Patient vitals monitoring
• Active inpatient medications
• Allergy lists management
• Computerized Provider Order Entry (CPOE) workflows

The CIS is typically the most user-facing component for physicians and nurses on the ward, integrating directly into the overarching HIS to ensure that clinical interventions are immediately linked to inventory consumption (e.g., pharmacy dispensing) and subsequent billing events.

The Cardiology Information System (CVIS), also known as Cardiovascular Information System, manages cardiology-specific workflows that require specialized data handling beyond general radiology or clinical systems.

CVIS Specialized Workflows

• Cardiac catheterization lab (cath lab) procedure documentation
• Echocardiography image capture and reporting
• Electrocardiogram (ECG/EKG) interpretation and storage
• Nuclear cardiology stress test management
• Cardiology-specific structured reporting templates

Cath Lab Integration

CVIS integrates with hemodynamic monitoring systems in the cardiac catheterization lab to capture real-time physiological data during interventional procedures.

• Real-time blood pressure, heart rate, ECG waveform capture
• Angiography image acquisition and storage
• Stent and device inventory tracking with lot numbers
• Procedure time stamps for quality reporting (e.g., door-to-balloon time)
• Integration with PACS for angiogram image storage

Echocardiography Systems

CVIS manages echocardiography workflows including image acquisition, measurement calculations, and structured reporting.

• DICOM echo image storage with measurements embedded
• Automated ejection fraction (EF) calculations
• Valve assessment and grading templates
• Comparison with prior echo studies for trend analysis
• Integration with EHR for cardiologist report delivery

The following comparison summarizes the primary purposes, data types, and integration standards for each departmental sub-system.

The synchronization of disparate, highly specialized systems is orchestrated through a Patient Administration System (PAS).

PAS Demographic Synchronization

The PAS manages the master flow of patient demographics. When a patient is admitted to a facility, the PAS generates demographic data that is broadcast to the LIS, RIS, and PACS.

Departmental systems integrate with the core EHR/HIS through well-defined patterns.

Order-Result Loop

1. Physician places order in EHR/CIS
2. ORM message sent to departmental system (LIS/RIS)
3. Departmental system performs test/procedure
4. ORU message returns results to EHR
5. Results appear in patient chart for review

Demographic Synchronization

1. Patient registered in PAS
2. ADT message broadcast to all systems
3. LIS, RIS, PACS create patient records
4. All systems share unified demographics

Understanding the data flow between departmental systems is critical for enterprise healthcare architecture.

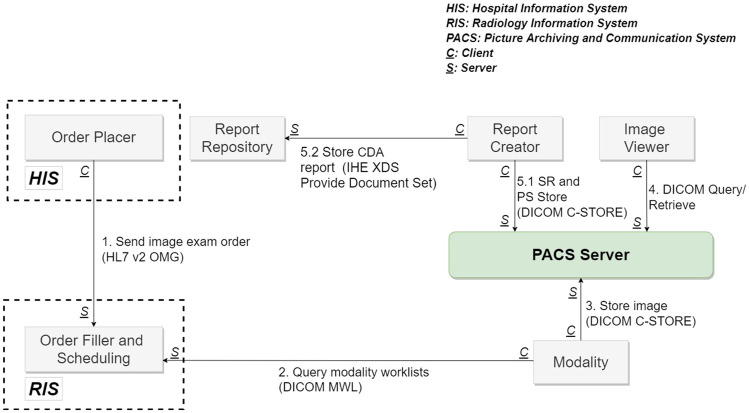

Complete Data Flow Diagram

The following describes the complete data flow from patient registration through diagnostic results:

View full size

Source: open-access paper on FHIR and DICOMweb imaging workflowsLast verified: 2026-03-11

This is narrower than the full departmental-systems estate, but that is why it helps. Instead of talking abstractly about “integration”, the figure shows one real order-to-report loop crossing HIS, RIS, PACS, viewer, and reporting roles.

1. Patient Registration (PAS): ADT^A04 message broadcast to all systems
2. Physician Order (EHR/CIS): ORM^O01 sent to LIS (lab) or RIS (imaging)
3. Lab Workflow (LIS): Specimen collection → Analyzer interface → ORU^R01 result to EHR
4. Imaging Workflow (RIS): Schedule exam → DICOM MWL to modality → Exam performed
5. Image Storage (PACS): DICOM images stored → Storage commitment to modality
6. Radiology Report (RIS): Radiologist reads → HL7 ORU report to EHR
7. Cardiology Workflow (CVIS): Cath lab/echo → DICOM to PACS → Report to EHR

HL7 Message Types by Interface

Departmental clinical systems are specialized sub-systems that generate discrete, high-volume clinical data fed into the central EHR repository.

Core Concepts Recap

• LIS: Laboratory workflows, test lifecycle, LOINC codes, HL7 ORM/ORU
• RIS: Radiology scheduling, resource management, text reports, DICOM MWL
• PACS: Medical image storage, DICOM protocol, massive storage arrays
• CVIS: Cardiology workflows, cath lab, echocardiography, ECG management
• CIS: Real-time clinical data, CPOE, bedside care
• PAS: Master demographic synchronization across all systems

Integration Standards

• LIS/CIS: HL7 v2, FHIR
• RIS: HL7 v2
• PACS: DICOM (exclusively)
• PAS: HL7 ADT messages
