Operational visibility starts with observable workflow events
Operators need to see when imports finish, when image sets are created, when workflows fail, and when downstream publication stalls. Observable state transitions are what turn a workflow from a black box into an operable system.
Representative EventBridge pattern for HealthImaging events
A simplified event pattern showing how operators can subscribe to specific HealthImaging lifecycle events instead of polling blindly.
Click on an annotation to highlight it in the JSON
Event-driven observability path
Loading diagram...
Monitoring with AWS HealthImaging
AWS documentation describing event, logging, and monitoring surfaces for HealthImaging.
Review HealthImaging monitoringAWS HealthImaging events - Amazon EventBridge
Amazon EventBridge reference listing direct HealthImaging service events such as Import Job Completed and Image Set Created.
Review HealthImaging EventBridge eventsResilience comes from explicit failure policy, not optimistic assumptions
A resilient orchestration design states what should happen when import jobs fail, when a reviewer never responds, when downstream systems are unavailable, or when a queue grows beyond its SLO. Durable retry and timeout behavior is part of the product, not a background implementation detail.

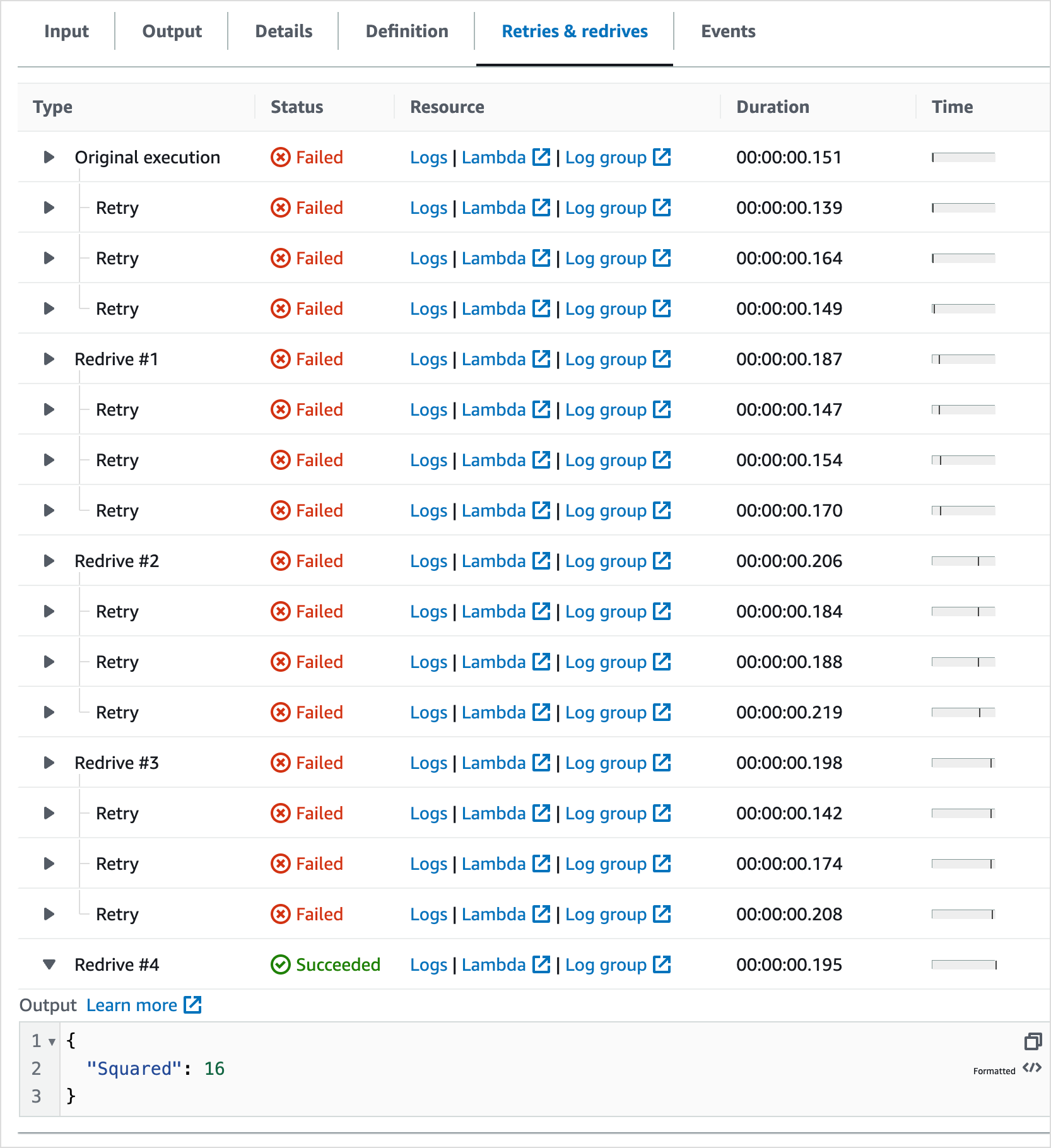

Step Functions redrive is useful here because eligible Standard Workflow executions can continue from the unsuccessful step instead of replaying the entire workflow. That is especially valuable when upstream steps already produced durable results or when repeating them would create confusion for operators.
- Define timeout and escalation policy for human review stages.
- Use durable buffering for burst handling and retry isolation.
- Differentiate long-lived approval paths from high-volume short tasks when choosing workflow type.
- Keep recovery and redrive evidence visible to operators.
Choosing workflow type in Step Functions
AWS guidance on Standard versus Express workflows, relevant for durability and execution-lifetime decisions.
Compare workflow typesRestarting state machine executions with redrive in Step Functions
AWS documentation explaining that eligible failed, aborted, or timed-out Standard Workflow executions can be continued from the unsuccessful step.
Review execution redriveRegional failover is still a workflow concern when readers and archives span sites
If remote readers, worklists, and archives span multiple sites or Regions, disaster recovery is not only an infrastructure problem. The orchestrator needs to know which queue is authoritative, whether assignments should fail over, and how downstream publication resumes without duplicating or losing state.
Multi-site active-active DR on AWS
AWS Architecture Blog example of regional active-active failover patterns that inform resilient distributed reading and routing designs.
Review the active-active DR patternLifecycle controls should be policy-driven and auditable
As archives scale, the orchestrator should treat frequent-access, archive, and deletion transitions as governed states. That includes who is allowed to trigger them, what retention policy justified them, and how the organization will prove those actions later.
What is AWS HealthImaging?
Developer guide overview of HealthImaging storage behavior and service role, useful for lifecycle planning.
Review HealthImaging in the developer guideKnowledge Check
Test your understanding with this quiz. You need to answer all questions correctly to mark this section as complete.
