Imaging AI starts with curation, de-identification, and labeling design
Imaging AI pipelines inherit the realities of radiology and imaging informatics. Studies arrive through DICOM workflows, are stored in PACS or cloud archives, and need de-identification, dataset curation, and label creation before they are useful for model development.
The staging source emphasized cloud routing and DICOM-aware services. The deeper lesson is architectural: study, series, and instance structure, plus acquisition metadata and report linkage, should stay visible throughout the labeling process so the dataset remains clinically interpretable.
DICOM-native imaging AI pipeline
Loading diagram...

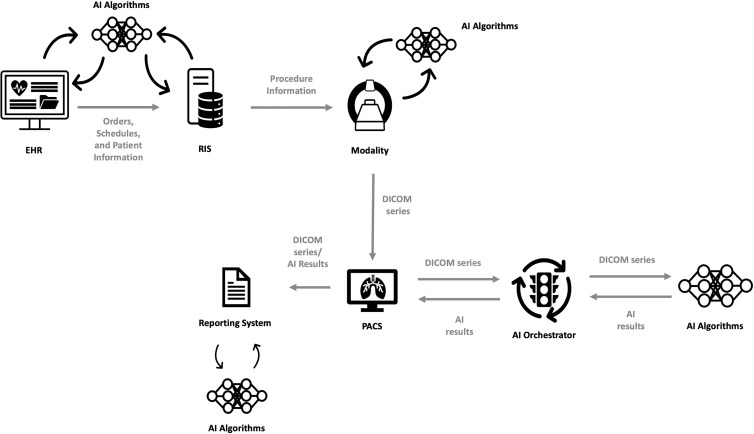

RSNA primer on integrating AI into the radiology workflow
Peer-reviewed RSNA article showing where AI sits across ordering, acquisition, reporting, storage, and standards-based interoperability workflows.
Review the radiology workflow primerDICOM PS3.3 Chapter 7 model of the real world
Official DICOM chapter showing the study, series, image, report, and provenance hierarchy that imaging AI datasets rely on.
Review the DICOM information modelReader studies and task design matter as much as architecture
Not every imaging model answers the same question. Some rank studies for prioritization, some localize findings, some estimate quantitative biomarkers, and some act as a second reader. The evaluation design should match that role.
Imaging study designs answer different deployment questions
| Study design | Best for | What it still misses |
|---|---|---|
| Retrospective classification benchmark | Early feasibility and error analysis | Real workflow effects and reader behavior change |
| Localization or segmentation benchmark | Spatial performance and annotation agreement | Whether the output actually changes clinical decisions |
| Reader study | Human-AI team performance under realistic interpretation tasks | Longitudinal operational effects after release |
| Silent deployment | Operational calibration and workflow fit before user exposure | Actual user response to the visible tool |
Accuracy is not the only endpoint
Imaging tools are often valuable because they triage work, shorten read time, reduce misses in a narrow use case, or standardize quantification, not because they replace the radiologist.
Once an imaging system moves from retrospective benchmarking toward clinical trials or prospective evaluation, reporting discipline matters. Teams should specify the exact intended use, user role, study workflow, input acquisition assumptions, and failure handling rather than reporting a standalone accuracy number.
CONSORT-AI reporting guideline
Primary reporting guidance for clinical trial reports involving AI interventions, useful when imaging tools are evaluated in reader studies or prospective clinical workflows.
Review CONSORT-AISPIRIT-AI protocol guideline
Primary protocol guidance for planning clinical trials of AI interventions before the reader study or prospective evaluation begins.
Review SPIRIT-AIDeployment needs packaging, monitoring, and conservative rollout
Production imaging AI is usually wrapped into existing imaging workflows rather than replacing them. Predictions often need to stay attached to the original study, series, and instance context so that archives, viewers, and reviewers can trace the output back to the source acquisition.
In practice that often means DICOMweb or viewer-integrated retrieval patterns for studies, series, instances, and metadata rather than an isolated file-export pipeline. The serving path has to preserve the imaging hierarchy that readers and downstream systems already use.
- Monitor scanner mix, protocol changes, and site-specific prevalence shifts.
- Track false-negative and false-positive patterns by modality, anatomy, and acquisition context.
- Use staged release patterns such as silent mode, limited rollout, or second-reader mode before wider activation.
- Keep provenance so predictions can be traced back to the exact study, series, model version, and review workflow.
DICOM PS3.18 Chapter 10 studies service and resources
Official DICOMweb chapter describing study, series, instance, and metadata resources used in web-based imaging retrieval.
Review the DICOMweb studies serviceFDA overview of AI/ML-enabled medical devices
Current FDA overview page for AI/ML-enabled device software functions in regulated medical contexts.
Review the FDA overviewKnowledge Check
Test your understanding with this quiz. You need to answer all questions correctly to mark this section as complete.
