Cloud architectures begin with trustworthy ingress and de-identification
The staging source for this track was strongest in its cloud architecture analysis: healthcare ML systems do not start at model training. They start at secure ingress from HL7, FHIR, DICOM, documents, or omics sources, followed by normalization and de-identification before broader analytics or research access.
How the staging source contrasted AWS and GCP healthcare ML building blocks
| Concern | AWS pattern | GCP pattern |
|---|---|---|
| Clinical data storage | Amazon HealthLake as a FHIR-oriented health datastore | FHIR stores inside the Cloud Healthcare API |
| Imaging archive | AWS HealthImaging with DICOMweb and archive-centric patterns | DICOM stores inside the Cloud Healthcare API |
| Analytics integration | Lakehouse or warehouse patterns using S3, Glue, Athena, and related services | Tight synchronization paths into BigQuery |
| Model development | SageMaker-centered training and release workflows | Vertex AI plus BigQuery-centered analytics patterns |
The contrast is easier to internalize when you look at the official reference visuals. AWS publishes scenario-classified healthcare reference architectures that show the governed analytics environment and ML lifecycle as explicit operating models. Google’s official Cloud Healthcare API documentation makes the project, dataset, and store boundary visible as the key architectural abstraction around FHIR, HL7v2, and DICOM assets.

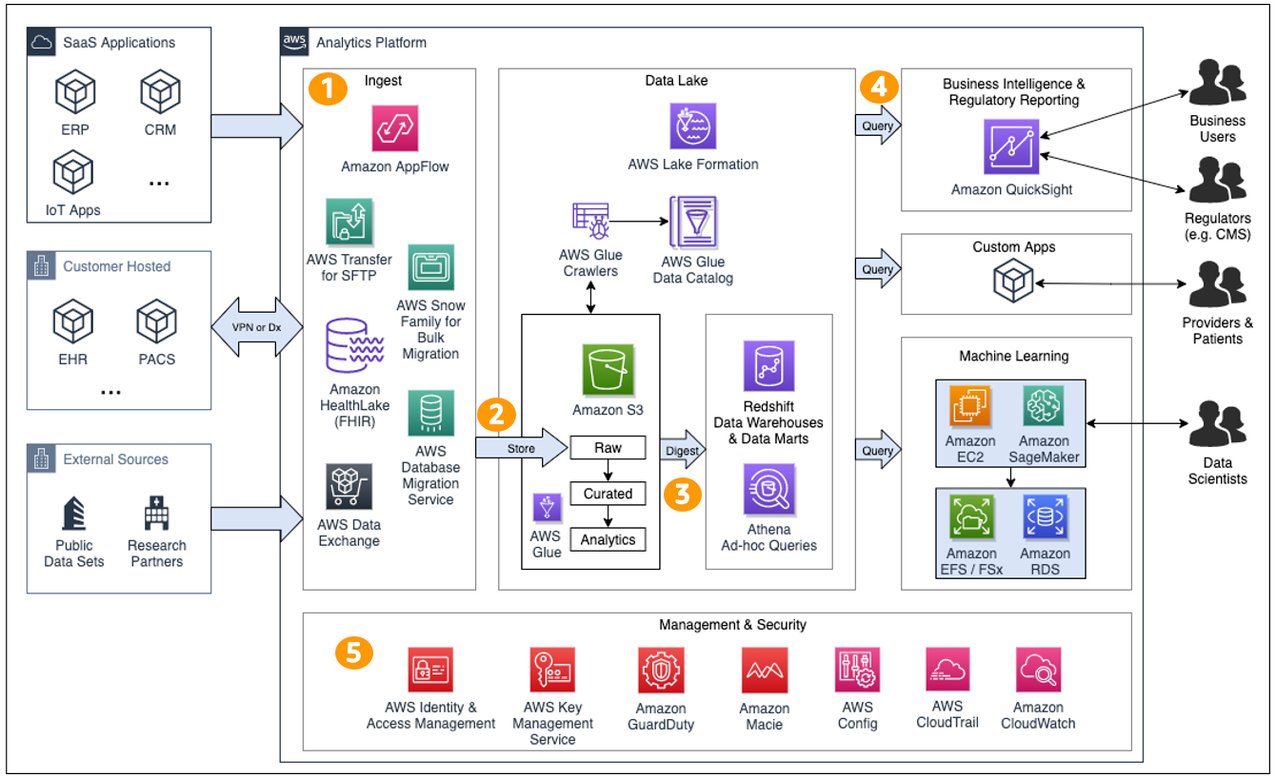

AWS healthcare analytics reference architecture
Official AWS healthcare lens scenario for governed ingestion, storage, query, and analytics pipelines.
Review the AWS analytics architectureGoogle Cloud Healthcare API projects, datasets, and data stores
Official Google documentation explaining the project, dataset, and store hierarchy that organizes FHIR, HL7v2, and DICOM data in Cloud Healthcare API.
Review the dataset and store hierarchyGoogle Cloud Healthcare API FHIR concepts
Official Google documentation describing the FHIR store model that anchors many GCP healthcare analytics flows.
Review the GCP FHIR modelHealthcare MLOps includes human review, not only CI/CD
General MLOps concepts still apply in healthcare, but the release process is broader. Teams need label governance, review of de-identification controls, dataset versioning, lineage from source systems to training features, approval for threshold changes, and a documented rollback path if behavior drifts.
Healthcare model release workflow by role
Loading diagram...
Model registry is necessary but not sufficient
Healthcare release evidence often needs dataset versioning, phenotype definitions, clinician review records, and change-approval artifacts alongside the model artifact itself.

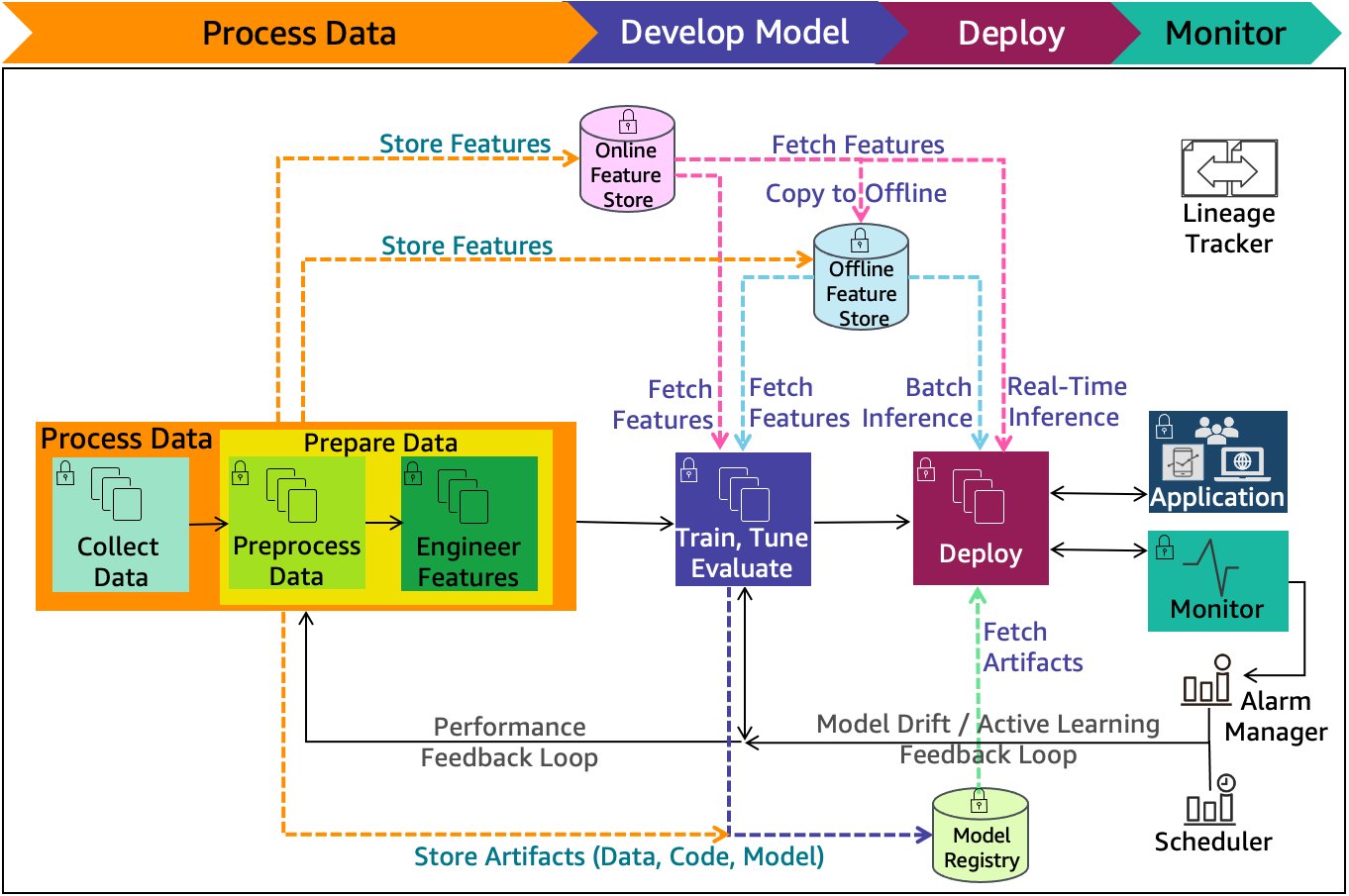

AWS healthcare machine learning reference architecture
Official AWS healthcare lens scenario for feature engineering, labeling, deployment, and monitoring.
Review the AWS ML architectureServing patterns should follow workflow latency and accountability
Some healthcare models belong in real-time APIs, but many belong in asynchronous or batch flows. Surveillance, document summarization, retrospective coding support, and many population tasks can tolerate queueing or scheduled refresh. Acute bedside decisions often cannot.
A serious audit question is whether the delivery pattern preserves accountability. Shadow mode, silent deployment, or clinician-reviewed batch output can be the right first operational state even when the model could technically answer in real time.
- Use synchronous serving when the decision window is short and the action owner is known.
- Use asynchronous flows when inference requires expensive retrieval, document processing, or human review before release.
- Use batch scoring for surveillance, outreach, utilization forecasting, and periodic summarization jobs.
- Monitor input drift, output distribution, latency, override patterns, and downstream clinical or operational outcomes.
Streaming FHIR data into BigQuery
Official Google Cloud documentation showing how healthcare data serving and analytics pipelines can stay close to the operational FHIR store.
Review the BigQuery streaming patternKnowledge Check
