AWS Agentic Healthcare Architectures

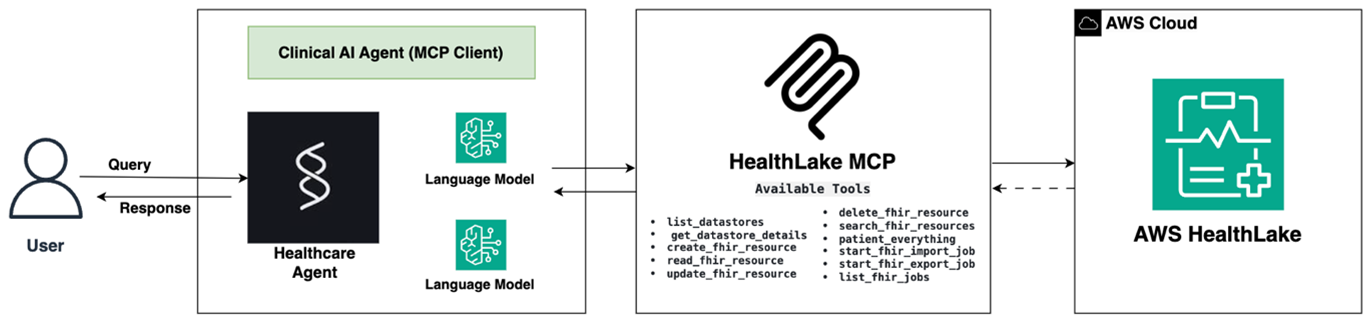

In AWS, the most useful mental model is to separate the healthcare data plane from the agent runtime and then insert a governed tool layer between them. That makes it easier to change models or tool exposure without rebuilding the entire data architecture.

View full size

Source: AWS HealthLake MCP healthcare agent architectureLast verified: 2026-03-12

AWS healthcare reference patterns often ingest data asynchronously. A document or event arrives, extraction services turn it into structured signals, and the agent consumes that structured context instead of trying to reason over a raw file directly.

Once an AWS healthcare agent can retrieve and act, the critical question becomes how its tool usage is constrained. Session isolation, OAuth-backed access, query narrowing, and clear search patterns all matter more than whether the model can produce a polished paragraph.

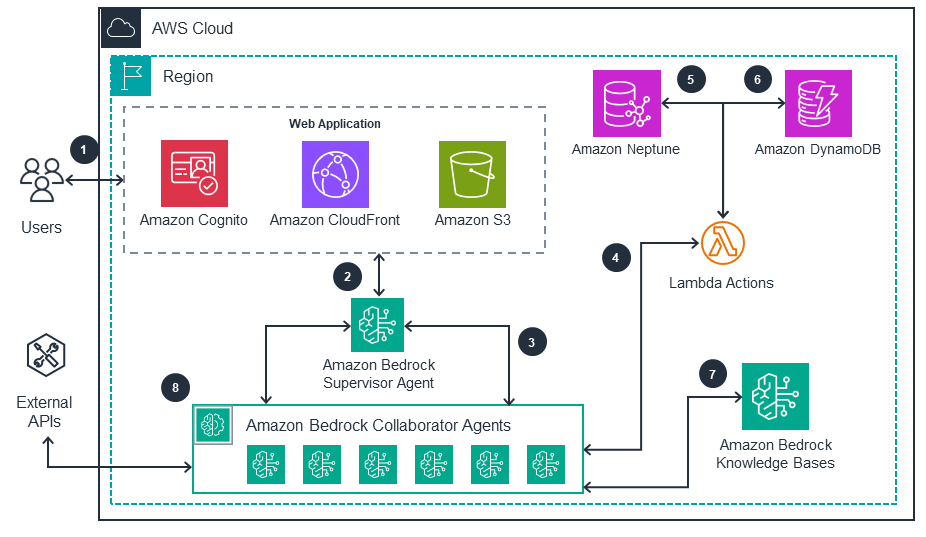

AWS now documents a concrete supervisor-agent pattern for data exploration: one Bedrock supervisor delegates work to collaborator agents, pulls from Bedrock Knowledge Bases, enriches with external APIs, and uses inferred graph relationships to navigate siloed data. That pattern matters in healthcare when the job is not one chart summary but a cross-system investigation.

The healthcare fit is strongest for utilization-management review, denial root-cause analysis, care-gap outreach design, or operational surveillance where eligibility data, policy rules, notes, schedules, and external program data all have to be reconciled. The graph step is useful only when those relationships change the answer; for a single-document task, simple retrieval is usually enough.

View full size

Source: AWS Guidance for Agentic Data Exploration on AWSLast verified: 2026-03-12

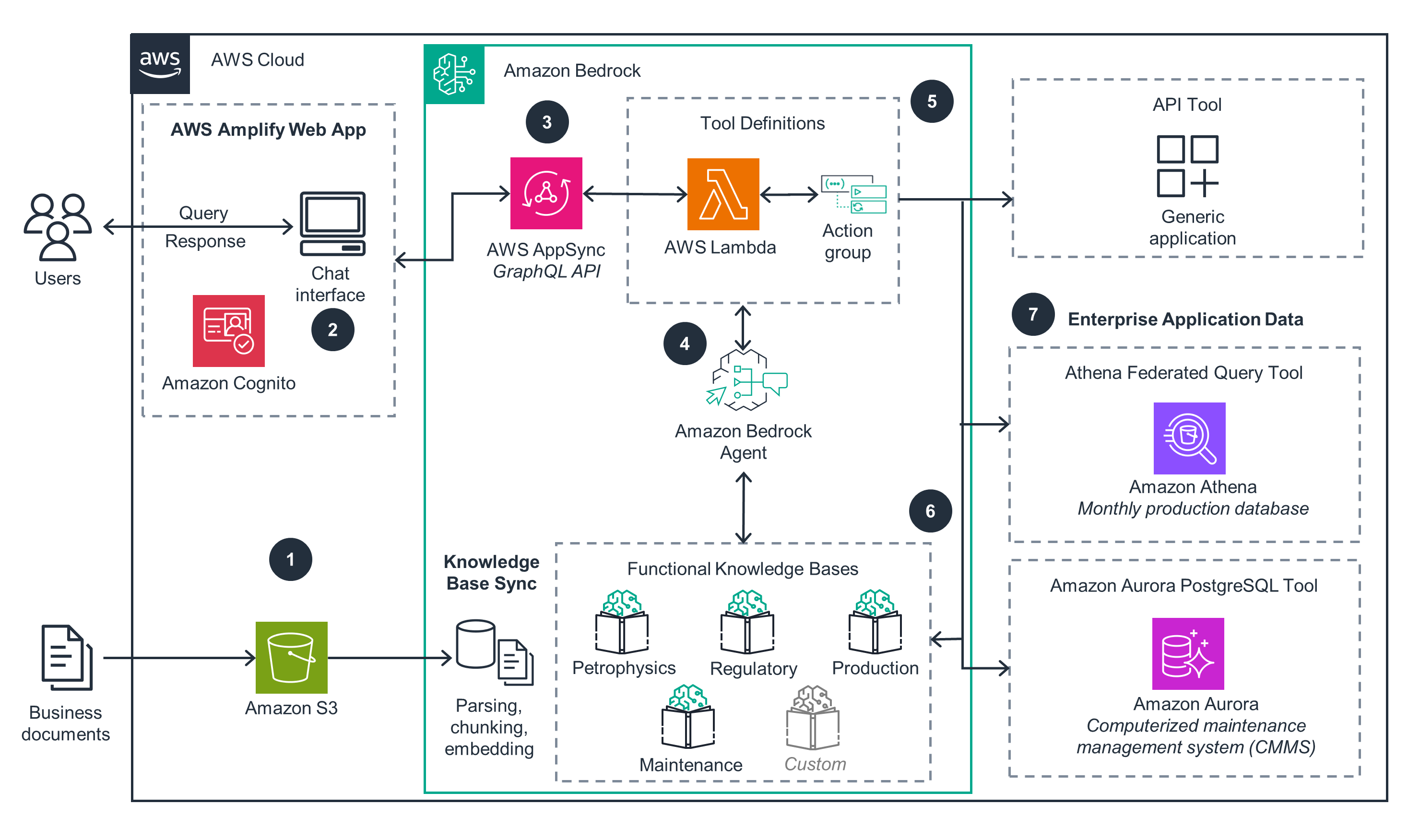

The AWS workflow-assistant guidance shows a bounded assistant shape: chat or task intake at the edge, Bedrock-backed reasoning in the middle, action groups and enterprise tools behind it, and governed knowledge-base sync from business documents. In healthcare, that is the right shape for staff copilots that gather evidence, draft next steps, and surface candidate actions without silently executing them.

View full size

Source: AWS Guidance for Agentic Workflow Assistants on AWSLast verified: 2026-03-12

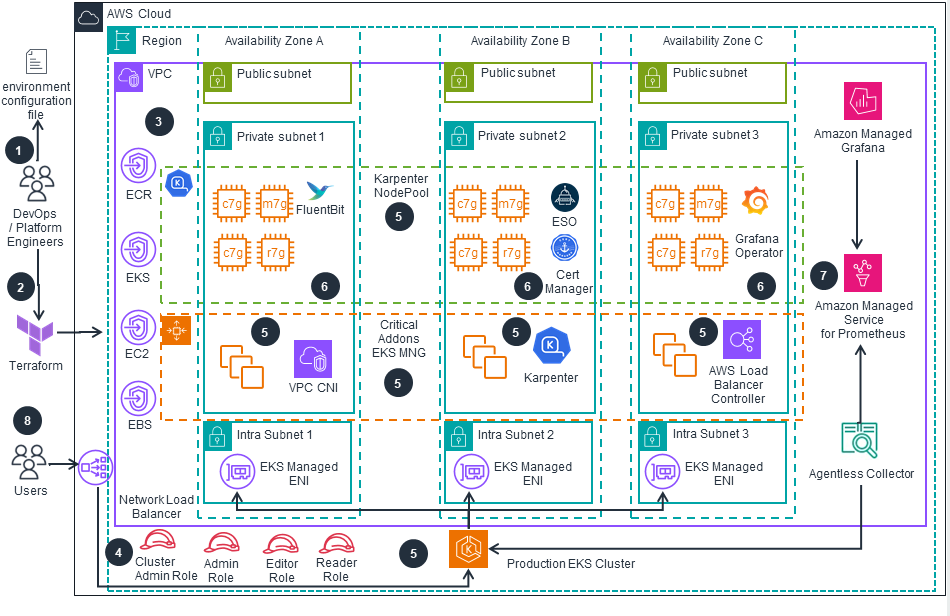

View full size

Source: AWS Guidance for Scalable Model Inference and Agentic AI on Amazon EKSLast verified: 2026-03-12

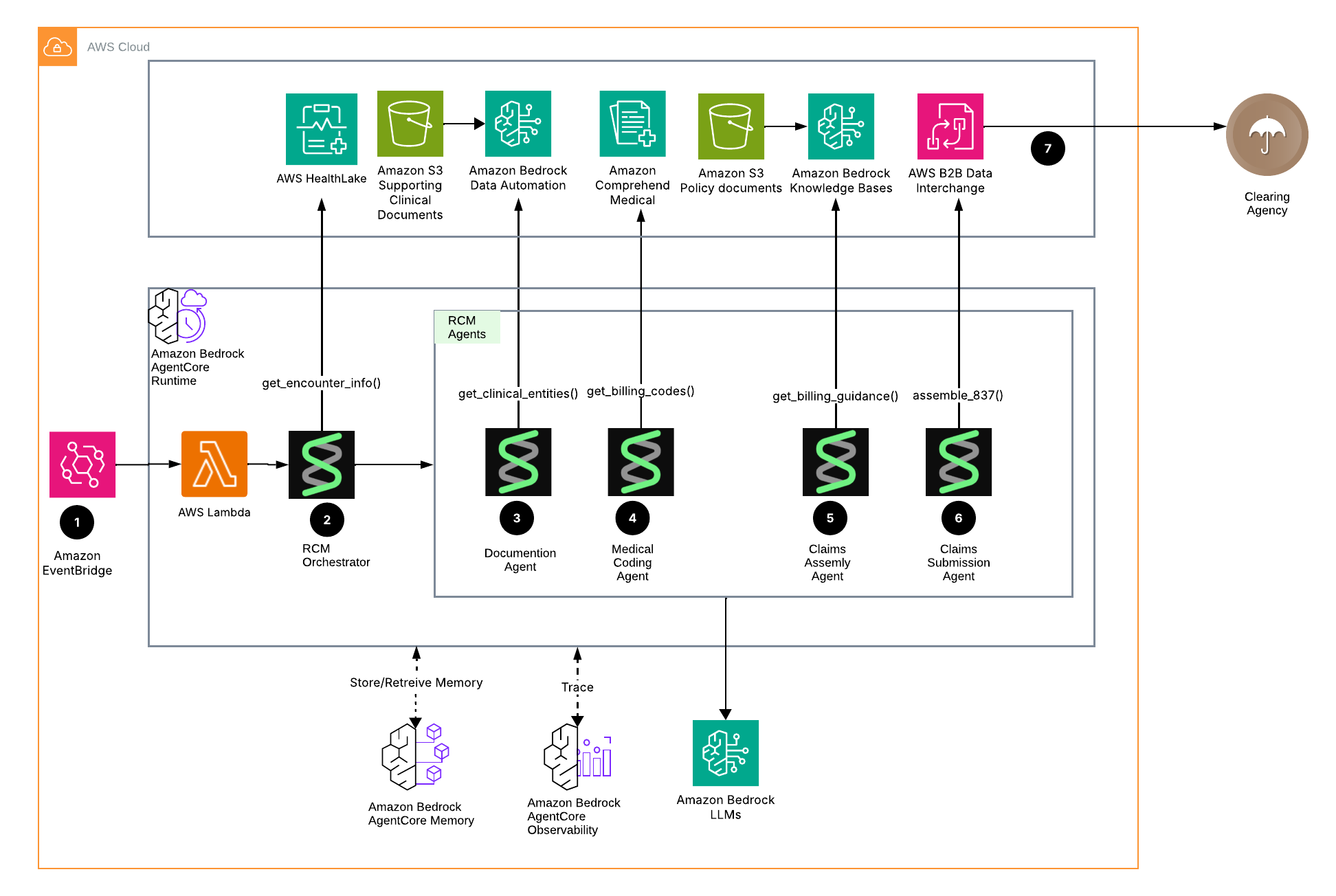

AWS healthcare reference patterns are increasingly explicit about specialized agents. In revenue-cycle automation, for example, the orchestrator, documentation, coding, claims assembly, and claims submission roles are separated so each step can be inspected, retried, or reassigned. That only works safely when the runtime also enforces policy and exposes traces of what each agent did.

View full size

Source: AWS revenue-cycle multi-agent architecture with Bedrock AgentCoreLast verified: 2026-03-12

AWS now separates agentic concerns into foundations, patterns, frameworks, and tools. That is useful in healthcare because teams often mix them together. Foundations explain why agency changes the software model, patterns describe how agents collaborate, frameworks and platforms reduce orchestration effort, and protocols and tools decide how the assistant reaches real systems.

In practice, healthcare teams should choose the framework and protocol layer based on which systems need to be exposed, how tenant context travels through the workflow, and whether the platform needs managed controls or custom infrastructure. Tool strategy is part of the safety boundary, not an afterthought after the prompt works.
