Reliability, Observability, and Change Control

A RAG or agent workflow has separate failure surfaces: ingestion, index freshness, retrieval, reranking, prompt assembly, model response, citation, and tool execution. Define a measurable service objective for each user-visible stage and an error budget or review threshold appropriate to its risk.

View full size

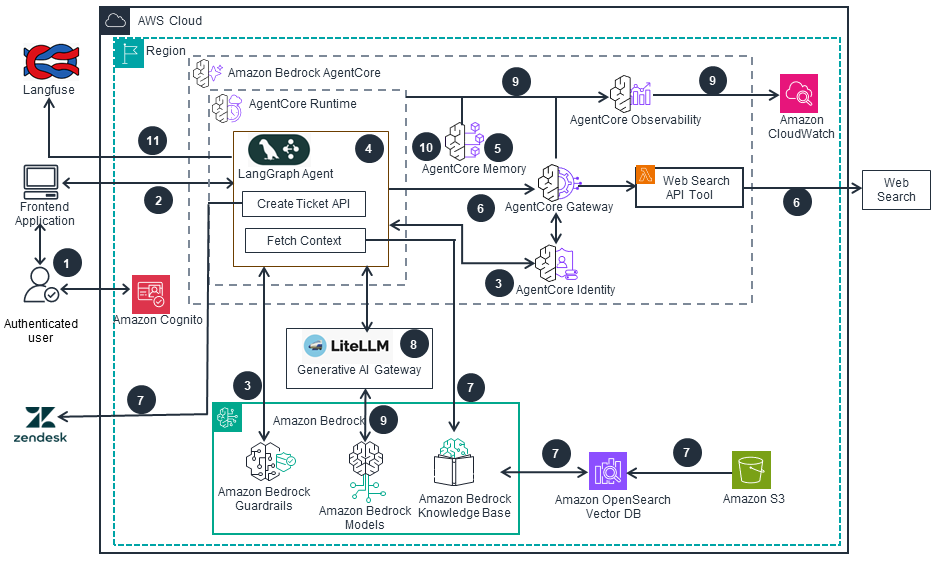

AWS Solutions: Agentic AI operational foundations figure (CC BY-SA 4.0)Last verified: 2026-08-26

Record a request correlation ID, non-sensitive caller scope, corpus and index version, retrieved evidence IDs, filter decision, prompt template version, model configuration, policy result, tool outcome, and latency by stage. Redact sensitive payloads and retain only what an investigation needs.

Treat 429 and 503 responses as capacity and dependency signals. Use bounded exponential backoff with jitter where the operation is safe to retry, preserve idempotency keys for writes, and protect dependencies with queue limits, backpressure, timeouts, and circuit breakers.

Chunking, embeddings, metadata filters, rerankers, prompts, and index migrations can all change the evidence presented to a model. Version them, evaluate them against representative and permission-sensitive cases, release gradually where the product allows it, and retain a proven rollback route.

This course-synthesis lifecycle extends Corpus Ingestion: treat a parser, chunker, or embedding change as an immutable candidate data source and index. Amazon Bedrock Knowledge Bases documents that parsing strategy and chunking strategy cannot be changed after a data source is connected, while its ingestion logs can record per-document processing outcomes.

1. Detect source-to-index drift with lineage and freshness signals.
2. Compare a candidate index with the prior version on the same evaluation set.
3. Exercise deletion, restore, dependency loss, and fallback paths before a high-risk release.
4. Record the decision, owner, and conditions for rollback.

1. Triage by correlation ID: identify the caller scope, index version, evidence IDs, dependency status, and policy result.
2. Classify the defect: source drift, permission mismatch, retrieval loss, model behaviour, tool failure, or capacity event.
3. Contain with the narrowest safe control: pause ingestion, roll back index, open a circuit, or route to a retrieval-only or single-agent fallback.
4. Restore and verify against RTO, RPO, residency, and representative quality checks; publish the learning into the next change control.

A useful trace answers an operator’s decision question: which configuration, evidence set, policy result, and dependency outcome produced this response? It does not require storing a complete user prompt or document body. Assign the correlation identifier at intake, propagate standard trace context across retrieval and tool boundaries, and attach immutable version identifiers rather than mutable labels such as “current index”. Sample successful traffic according to an explicit retention and cost policy, but keep error and quality-regression traces inspectable. The Agentic AI Lens recommends standardized schemas and end-to-end context propagation so concurrent runs can be separated reliably.

Dashboards are useful only when each signal changes a decision. Start with a bounded question and a named owner. For stale ingestion, compare source-event time with indexed-at time by corpus version and pause promotion when the lag exceeds the workload threshold. For throttling, segment 429 and 503 outcomes by dependency, operation, retry count, and fallback result; reduce offered load before retrying into a saturated service. For a quality regression, join answer-evaluation failures to index, prompt, policy, and model versions so a team can stop the candidate release rather than tuning blindly.

A rollback cannot be reconstructed from a model name alone. Treat the corpus snapshot, chunking rule, embedding and index configuration, filters, reranker, prompt, policy bundle, evaluation set, and deployment target as one release manifest. Before promotion, prove that the candidate can serve representative, denied, stale, and dependency-failure cases; state who may stop traffic and how the previous manifest is restored. This is architecture guidance, not a recovery SLA: recovery objectives remain workload- and service-specific and must be drilled.

Practice this manifest in a game day. Start with a source update that is accepted upstream but absent from the candidate index, then verify that freshness telemetry identifies the affected scope without exposing document bodies. Introduce a controlled dependency throttle and verify backpressure, bounded retries, and the chosen degraded response. Finally, inject an evaluation failure for an otherwise healthy candidate and prove that the on-call owner can identify the manifest, stop promotion, restore the prior configuration, and re-run the affected cases. Record elapsed restoration time and lost or replayed work against the workload objective; a dashboard with no exercised decision path is not recovery evidence.

An SLO is useful when it represents a user outcome that an operator can influence. Define separate indicators for fresh permitted evidence, grounded cited answers, and successful authorized tool completion; do not collapse them into one availability percentage. State the population, exclusions, measurement window, and error budget in a release-owned record. An alert should name the threshold, alert owner, runbook, and mitigation authority. Page on a fast-burning budget or a safety breach; create a ticket for a slow trend. This is workload policy, not an AWS guarantee, and it must be calibrated with observed traffic and recovery capability.

Validate the contract by injecting a candidate-quality regression and a dependency failure separately. The first should consume the quality budget and stop promotion without being misclassified as infrastructure availability. The second should show bounded fallback and recovery telemetry. After every incident, review whether the alert was actionable, whether the owner had sufficient context, and whether the chosen mitigation created a hidden authorization or freshness regression.

Incident replay is a controlled reconstruction, not a request to re-run a user’s production prompt against today’s corpus. Preserve a redacted replay bundle with configuration versions, normalized request class, identity scope token or reference, selected evidence IDs, policy receipt, tool outcomes, and terminal reason. Rehydrate only in an approved environment with the same permitted corpus snapshot and explicitly mark missing data. This lets a team distinguish a system regression from a source change while reducing the chance that traces become an uncontrolled duplicate of protected content.

Make replay results reviewable by recording a comparison outcome: reproduced, not reproduced, blocked by unavailable evidence, or rejected by authorization. A non-reproduction result can still be valuable if it proves the investigation used a different corpus, policy, or dependency state. Do not fill a missing replay field with a guessed current value. Escalate when the missing record itself prevents a safety or compliance conclusion, then improve the telemetry schema through the ordinary release process.
