Adaptive, Hierarchical, Graph, and Multimodal Retrieval

Frontier retrieval is an experiment category, not an architecture tier. First establish a strong hybrid baseline with corpus versioning, metadata filters, lexical and semantic retrieval where appropriate, reranking, citations, abstention, and a labelled evaluation set. Advanced techniques remain hypotheses until they improve the required outcome under the same constraints.

A useful controlled experiment also measures the cost of being wrong. Define cases where text-only retrieval should win, where an image or table is necessary, and where the correct answer is abstention because the original source cannot be inspected. Review a sample of retrieved artifacts with a domain owner to test whether bounding boxes, timestamps, and derived captions point to the intended material. Compare any answer generated from a derived artifact with an answer constrained to original source text, then preserve the disagreement as an evaluation case. Promotion requires more than a better aggregate score: the route must remain explainable, permission-correct, operationally bounded, and reversible when extraction or indexing quality regresses.

Query routing can send a request to a specialised index or retrieval contract. Decomposition can split a multi-part request into evidence-bearing subquestions. Multi-query expansion, reciprocal rank fusion, HyDE-style synthetic documents, contextual retrieval, and corrective retrieval can improve a class of queries, but each adds model calls, possible intent drift, and a larger trace to evaluate.

Store the original query, each generated subquery or synthetic expansion, the route decision, retrieved evidence, and final answer provenance. A generated query is not a source. Reject expansions that widen tenant, data-classification, or tool scope.

Hierarchical retrieval indexes granular children for precision while returning an approved parent section, document, or structured record for coherent answering. It can be useful when a single chunk matches a term but surrounding constraints, exceptions, or definitions determine the answer. Child matches must retain parent version, source location, permissions, and extraction lineage.

Graph retrieval can help where entities, relationships, paths, communities, and change history carry meaning that independent chunks miss. A local traversal might answer a relationship-specific question, while a global community summary may support a broader synthesis. Both are design choices with freshness, construction, traversal, provenance, and access-control costs.

The GraphRAG paper is a useful design reference, not a production guarantee. Treat graph extraction quality, community construction, and summary prompts as versioned components; test them against a hybrid baseline and retain source-level provenance for generated graph artefacts.

Multimodal retrieval starts with a traceable ingestion contract. For a page, image, audio segment, or video interval, preserve source object version, extraction method, derived text or structure, location coordinates or timestamps where relevant, classification, permissions, and supported model or feature requirements. Amazon Bedrock Data Automation can be one extraction component, but it does not make every derived assertion authoritative.

Choose the representation before comparing retrieval quality. Bedrock Data Automation can convert supported media into searchable text representations, which then follow text chunking and text-embedding paths. Native Amazon Nova Multimodal Embeddings instead represent media directly; audio and video segmentation is configured with that embedding model. This is a representation choice, not a general parser selection: confirm the selected knowledge-base route, data source, embedding model, and current support in the AWS documentation.

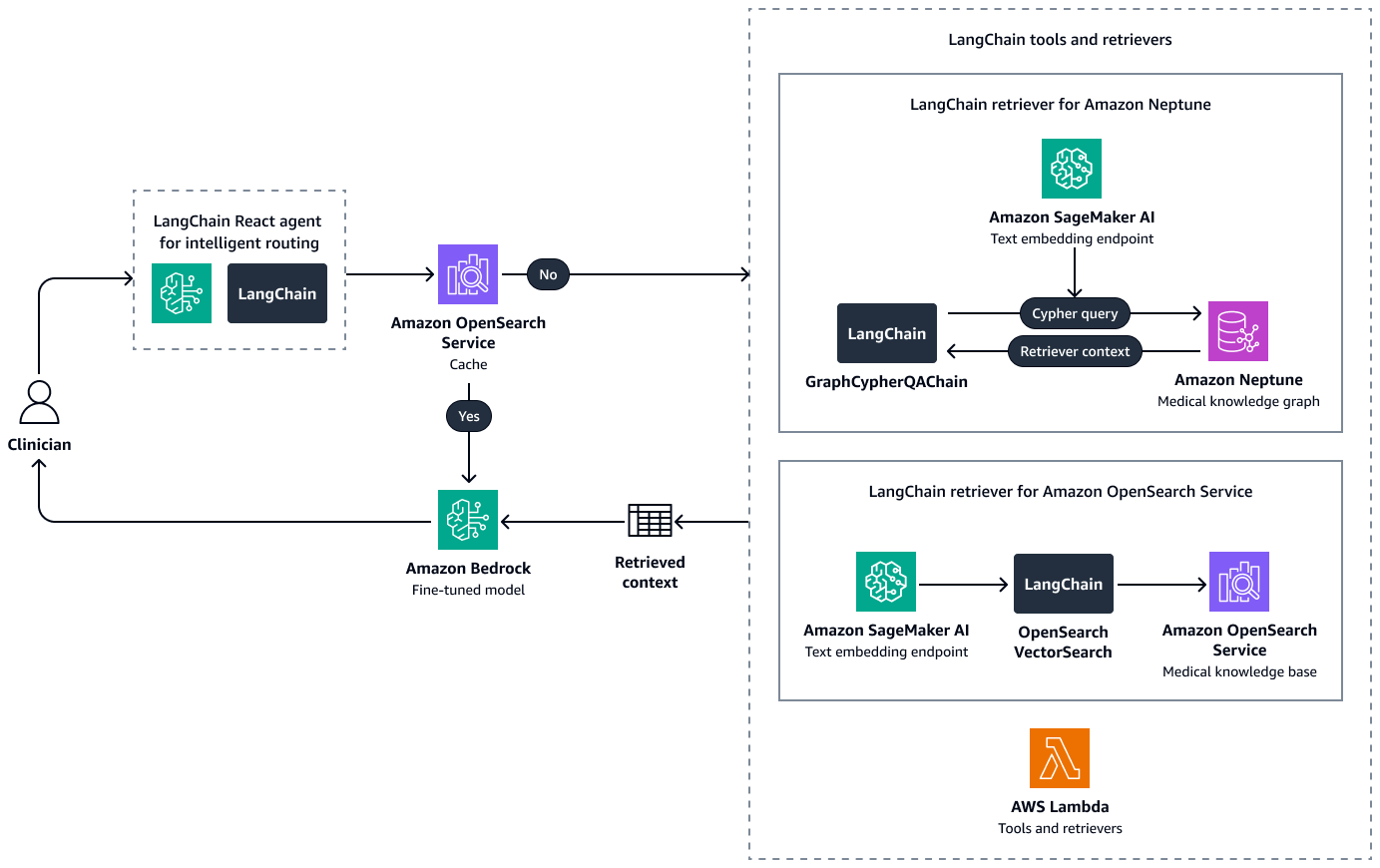

AWS healthcare guidance illustrates a specialised routing pattern: select a retrieval contract by query intent, reuse a permitted cache only when its scope is safe, and combine graph or vector evidence only when the question needs both. Treat the figure as a source-specific architecture example, not clinical-decision support or a default modern AWS stack.

View full size

AWS Prescriptive Guidance: Developing and orchestrating generative AI solutions for healthcare (CC BY-SA 4.0)Last verified: 2026-08-25

Adaptive thresholds, budgets, routing policies, and self-reflective retrieval are learned workload policies, not universal constants. Set conservative limits from an evaluated dataset, version the policy with its corpus and model dependencies, and expose a kill switch to restore the established hybrid path. Validate red-team, denied, stale, ambiguous, and dependency-failure cases before expanding traffic.

1. Specify the query class and user outcome that the experiment intends to improve.
2. Run ablations that remove one advanced component at a time to identify its contribution.
3. Measure quality, citations, abstention, latency, cost, policy denials, and operational failure samples together.
4. Use staged rollout and review traces for new unsafe or unexplained routes.
5. Roll back to the prior hybrid configuration when quality or constraints regress, and retain the evidence receipt.

Frontier work should start with an evidence card that makes its claim falsifiable. Name the query class that a strong hybrid baseline fails, the proposed mechanism, the expected benefit, and the constraint it must not weaken. Freeze corpus snapshot, authorization filters, source versions, model route, and test set so an observed change has an interpretable cause. Amazon Bedrock Knowledge Bases has build and test workflows, but its available configurations, supported data sources, models, and retrieval behavior are route-specific; confirm them for the intended Region and workload rather than extending a console experiment into a general capability claim.

Advanced retrieval increases the chance of finding competing passages, summaries, graph facts, and generated descriptions. A system should never silently resolve that contradiction because one item has a better similarity score or produces a smoother answer. Preserve every candidate’s source object and location, publication or ingestion version, authority class, applicable scope, extraction method, and permission result. Apply a declared authority rule, for example preferring the current approved procedure over an older commentary, only when both resources are in scope for the caller. If the rule cannot decide, cite the conflict and abstain or route it to approved review.

A multimodal route is useful only when it improves an outcome that text-only retrieval cannot reliably support, such as finding a diagram region or reconciling a table with surrounding procedure text. Treat derived captions, OCR, embeddings, and summaries as derived evidence rather than original authority. The retrieval response must keep a pointer to the source object version and a human-inspectable location such as page, bounding box, timestamp, or table cell. Build matched experiments: compare text-only, multimodal retrieval, and a no-derived-artifact ablation on the same permission-filtered corpus. Test poor scans, missing pages, conflicting captions, unsupported file types, stale derivatives, and route/model/data-source limits explicitly.

A maturity label should describe demonstrated operational capability, not novelty. Before moving from a hybrid baseline to a graph, corrective, or multimodal route, identify the new state it creates: derived artifacts, graph edges, cache entries, route rules, extraction models, and permissions. For each, define owner, source lineage, retention, deletion propagation, rollback target, and monitoring. Estimate the cost of complexity as additional ingestion work, storage, retrieval stages, evaluation cases, tracing, incident diagnosis, and authorization boundaries; measure these in the target workload rather than asserting a universal overhead. A feature that cannot be disabled or explained safely has not earned broader traffic.

Validate reversal in a realistic environment: disable the route, confirm traffic returns to the previous hybrid configuration, ensure citations do not point to removed derived artifacts, and test that deletion or permission changes propagate to every new representation. Record failures as maturity blockers rather than papering over them with a larger context window or an extra model call.

Frontier retrieval can surface more evidence, including low-quality scans, stale derivatives, hidden prompt instructions, contradictory source fragments, or material the caller is not allowed to inspect. Build an evaluation set that makes the safe behavior observable: return an original-source citation only when its location can be inspected; label derived OCR or captions as derived; reject injected instructions inside retrieved content; preserve conflicting sources rather than merging by fluency; and abstain or escalate when authority, provenance, or permission is unresolved. Amazon Bedrock Knowledge Bases test workflows can help exercise a selected retrieval and generation configuration, but they do not remove the need for product-specific adversarial and permission testing.

Retain unsafe-evidence cases after a feature ships and sample live traces for new variants. A document migration, extractor upgrade, or new source type can reintroduce instruction-like text, lineage gaps, or permission drift even when the original evaluation passed. The rollback decision should identify the smallest affected route or artifact version, preserve the baseline hybrid path, and prevent the system from serving a cached derived result after its source has been deleted or reclassified.
