Orchestration becomes the control plane when one health service is not enough
Purpose-built AWS health services solve domain problems, but real healthcare workflows still cross boundaries. A clinical workflow may ingest data into HealthLake, retrieve imaging from HealthImaging, run a note-generation stage, and still require a human reviewer before anything is committed or downstream systems are notified.
Why orchestration sits above domain services
Loading diagram...
Step Functions service integrations
Official Step Functions documentation on connecting workflows to AWS services and external systems.
Review service integrationsClinical AI workflows still need explicit review and failure paths
AWS guidance on clinical generative AI orchestration is useful because it treats workflow structure as a safety control. Instead of letting AI-driven steps call each other freely, the workflow explicitly defines data preparation, model or service execution, validation, human review, and final action states.
When that review step is implemented for real, Step Functions usually needs an external callback path rather than a purely internal branch. Task tokens and human-approval flows are the mechanism that keeps the workflow paused until a reviewer or downstream system sends an explicit success or failure signal back into the state machine.

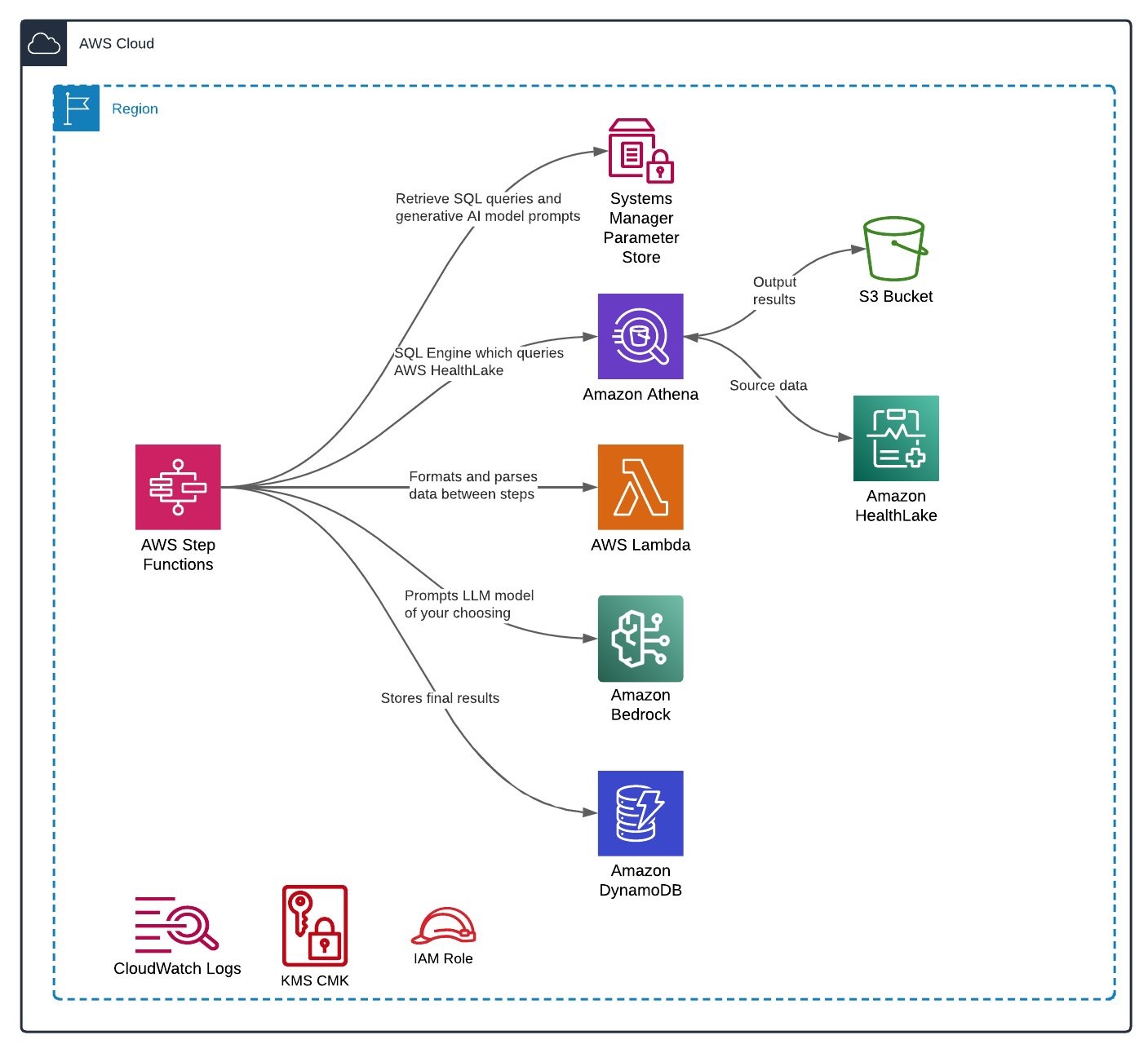

This picture is useful because it shows the concrete AWS boundary the lesson is talking about. Step Functions is not the data system and not the model; it is the durable workflow layer coordinating query, prompt assembly, model execution, output storage, and review-aware control flow.
Representative clinical AI approval workflow
Loading diagram...
Callback-based human review gate
Loading diagram...
Human-in-the-loop is an architecture decision, not a UX afterthought
Clinical AI workflows should make reviewer checkpoints, rollback paths, and final publication rules explicit in the orchestration layer.
Orchestrating clinical generative AI workflows using AWS Step Functions
AWS healthcare blog post showing how Step Functions can coordinate clinical AI workflows with review stages.
Read the orchestration patternWaiting for a callback with task token
Official Step Functions documentation for the wait-for-task-token callback pattern used in human approval flows.
Review task-token callbacksManaging human approval steps in Step Functions
Official tutorial showing the callback-based human approval pattern that maps well to reviewer-controlled healthcare workflows.
Read the human approval tutorialDistributed Map is the scale-out primitive for large healthcare workloads
Some healthcare workloads are single-patient workflows. Others involve tens of thousands of studies, files, or records. AWS Step Functions Distributed Map is the scaling primitive for those cases. It creates child workflow executions, tracks them as a Map Run, supports S3-backed input, supports ResultWriter to S3, and lets operators set tolerated failure counts or percentages.
Distributed Map for healthcare batch fan-out
Loading diagram...
Distributed Map controls that matter in healthcare operations
| Control | Meaning | Why it matters |
|---|---|---|
| Map Run | Tracked execution set for child workflows | Makes large batch runs observable instead of opaque |
| ResultWriter | Writes child workflow outputs to Amazon S3 | Simplifies downstream review and audit retention |
| ToleratedFailureCount | Maximum failed items before automatic Map Run failure | Prevents silent drift past an acceptable error budget |
| ToleratedFailurePercentage | Percent of failed items accepted before failure | Lets teams scale quality gates to very large datasets |
Distributed Map in Step Functions
Official Step Functions guide for large-scale parallel workloads, Map Runs, ResultWriter, and tolerated failure thresholds.
Review Distributed MapKnowledge Check
Test your understanding with this quiz. You need to answer all questions correctly to mark this section as complete.
