Applied healthcare solution blueprints are different from isolated service diagrams
The standalone AWS healthcare analytics and machine learning scenario pages explain the foundational environments: where governed data lands, where features and labels are prepared, and where models move through review into deployment. This lesson takes the next step and shows how those foundations are assembled into real healthcare solution families such as Member-360 intelligence, AI chart summarization, and digital pathology.
That distinction matters because implementation teams do not ship isolated service boundaries. They ship composite systems where HealthLake, HealthImaging, Bedrock, SageMaker, analytics stores, APIs, governance accounts, and human reviewers all have to fit one operating model. The official AWS diagrams are useful precisely because they keep those boundaries explicit.
How to read the applied solution families in this lesson
| Blueprint | Primary outcome | Core AWS pattern |
|---|---|---|
| Member-360 data products | Unified longitudinal or payer/member view with federated governance | HealthLake plus S3, Glue, Lake Formation, and consumer analytics accounts |
| Advanced analytics stack | Claims, provider, and EMR data parsed into analytics and end-user apps | Lambda-led parsing into HealthLake or S3-backed analytics services |
| Patient summarization | AI-generated chart summary returned to clinicians through an application API | API Gateway and Cognito front an async Lambda flow with Bedrock, Textract, HealthLake, and S3 |
| Digital pathology AI | AI-assisted whole-slide review and draft reporting with a pathologist still in control | HealthImaging plus SageMaker inference and Bedrock AgentCore reporting workflow |
From healthcare data substrate to reviewed AI workflow
Loading diagram...
Healthcare analytics reference architecture
Official AWS healthcare lens scenario that explains the prepared analytics environment these applied blueprints build on.
Review the analytics foundationMachine learning reference architecture
Official AWS healthcare lens scenario that explains the model review and monitoring lifecycle these applied blueprints inherit.
Review the ML lifecycleFederated data products turn raw healthcare domains into reusable intelligence

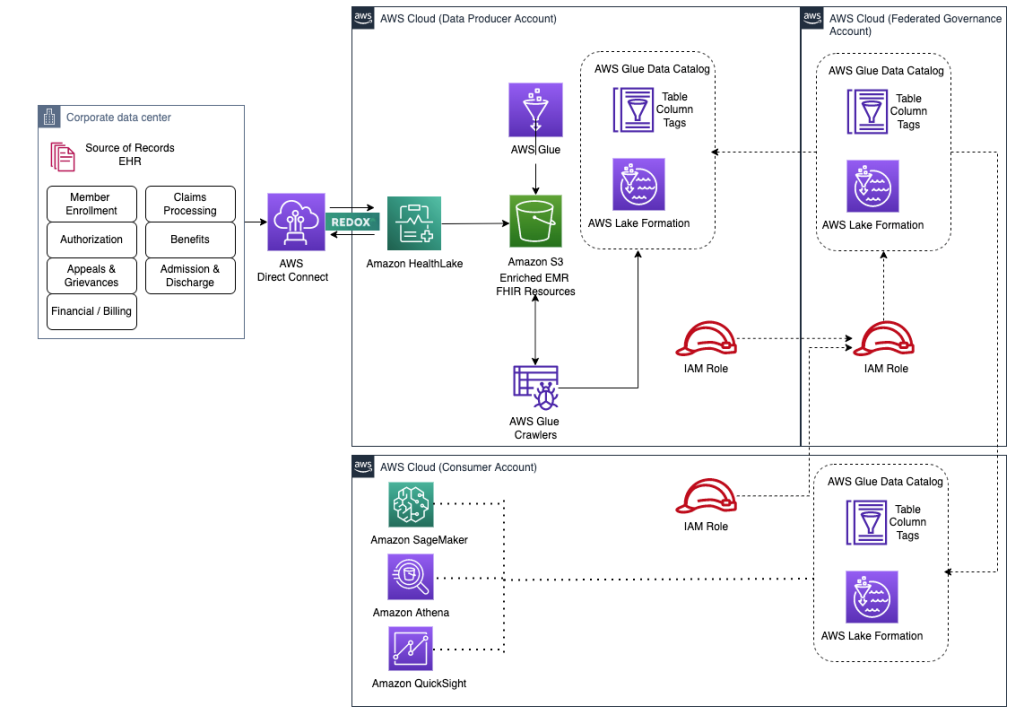

AWS uses more than one pattern for large-scale healthcare intelligence, but the common theme is data-product thinking. The Member-360 architecture shows a cross-account data-mesh model in which producer domains own the source data, HealthLake normalizes or enriches health content, and governance services such as Glue and Lake Formation make the resulting data products discoverable and shareable across consumer accounts.
That is operationally different from dropping everything into a single lake. The producer, governance, and consumer roles remain visible, which is important in healthcare where claims, enrollment, authorizations, admissions, and clinical domains often have separate owners, audit trails, and downstream consumers.
- Use this pattern when multiple domains have to publish governed healthcare data products instead of feeding one monolithic central team.
- HealthLake is valuable here because it turns structured and extracted unstructured clinical content into a FHIR-based substrate that consumer tools can query.
- Lake Formation and Glue matter because they make federated governance explicit rather than assuming producer domains can be trusted implicitly.
Build a Member-360 unified view using data mesh with Amazon HealthLake
Official AWS healthcare blog showing producer, governance, and consumer account boundaries for a Member-360 pattern.
Read the Member-360 architectureAmazon HealthLake developer guide
Specific AWS documentation for the service boundary around FHIR stores, import, export, and medical NLP enrichment.
Review HealthLake mechanicsPayer and provider analytics solutions turn parsed health data into serving layers and apps

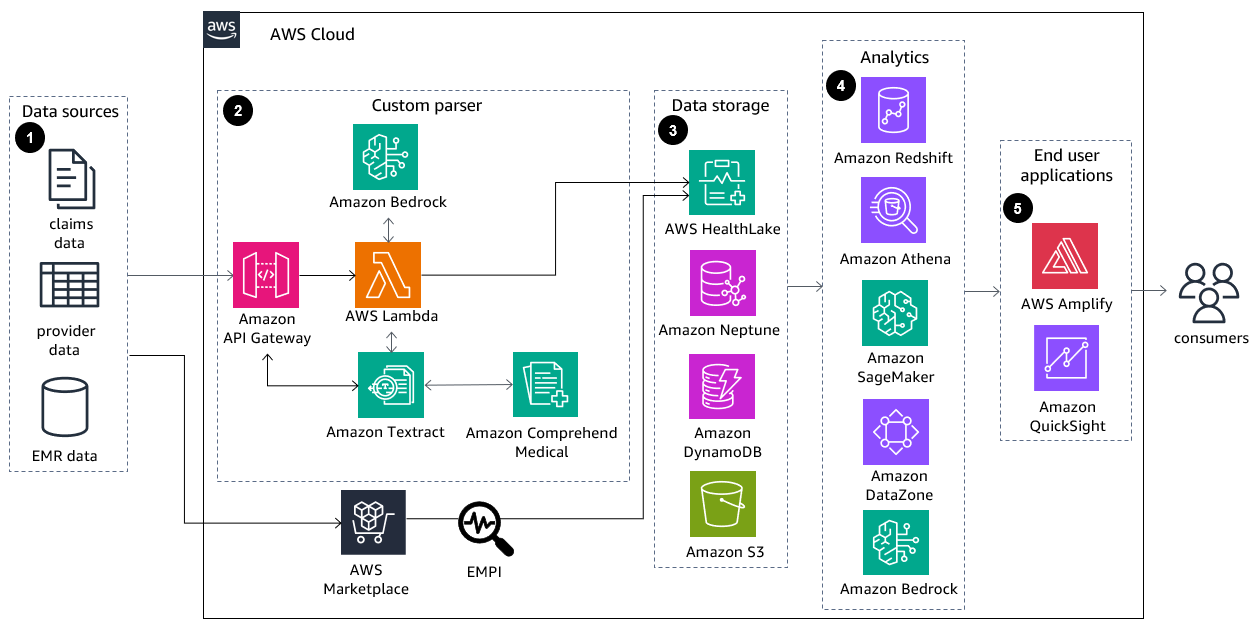

The AWS healthcare payor strategic-focus diagram pushes the data-product idea further into an applied analytics stack. Claims, provider, and EMR inputs are parsed through API Gateway, Lambda, Textract, Comprehend Medical, and Bedrock, then landed into storage and served out through Redshift, Athena, SageMaker, DataZone, QuickSight, and end-user applications.
That blueprint is useful because it shows a realistic split between ingestion and consumption. Parsing and normalization are only one stage. A production healthcare analytics solution still needs the warehouse or query tier, the model-serving or data-science tier, and the application tier that exposes the results to consumers, care teams, or operations users.
Why this is not the same as the analytics foundation page
The analytics foundation page explains the generic lakehouse environment. This diagram shows a payer-facing applied solution where document extraction, app delivery, and domain-specific consumers are already wired into the architecture.
What the payor analytics diagram is really teaching
| Layer | Decision hidden by generic "AI" talk |
|---|---|
| Custom parser | Which services extract and normalize heterogeneous documents before analytics begins |
| Data storage | Which stores hold clinical or graph-like data versus object or operational data |
| Analytics | Which tools answer warehouse, BI, ML, or cataloging needs |
| End-user apps | How insights or predictions are surfaced to real users rather than remaining notebook outputs |
Healthcare payor strategic focus areas
Official AWS architecture-diagram set for payor workloads, including the advanced analytics pattern used in this lesson.
Review the payor diagram setClinical summarization workflows need async orchestration, not a naked model call

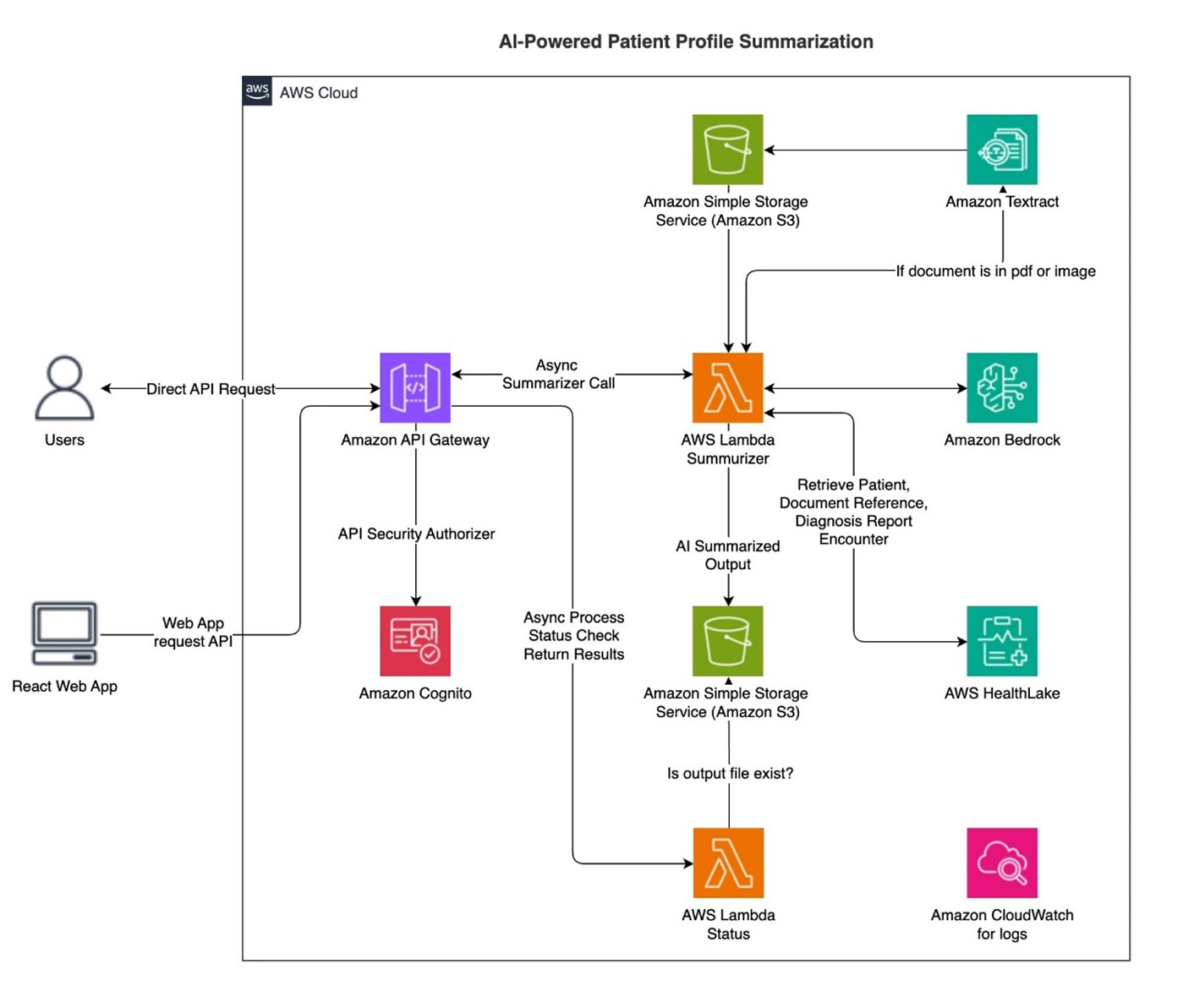

The 2025 AWS patient-profile summarization architecture is a good example of how applied generative AI differs from a demo prompt. API Gateway and Cognito front the application boundary, Lambda orchestrates the summarization flow, Textract handles PDF or image extraction, HealthLake provides clinical context, Bedrock generates the summary, and S3 stores both inputs and outputs while a status Lambda lets the client check for completion.
That is a better mental model for healthcare chart summarization because it preserves workflow realities: documents may need extraction first, the summarization may not finish in one instant request, and the result still has to be returned to an application surface that can support review rather than silently inserting generated text into a patient record.
Async patient summary path
Loading diagram...
Do not confuse summarization with autonomous documentation
This architecture is strongest when the generated output is treated as reviewable clinical support. The application boundary, status polling, and stored output all point to a human-in-the-loop operating model.
AI-powered patient profiles using AWS HealthLake and Amazon Bedrock
Official AWS healthcare blog showing the patient-summary workflow and its service composition.
Read the patient summarization blueprintDigital pathology blueprints combine imaging storage, model inference, and validated reporting

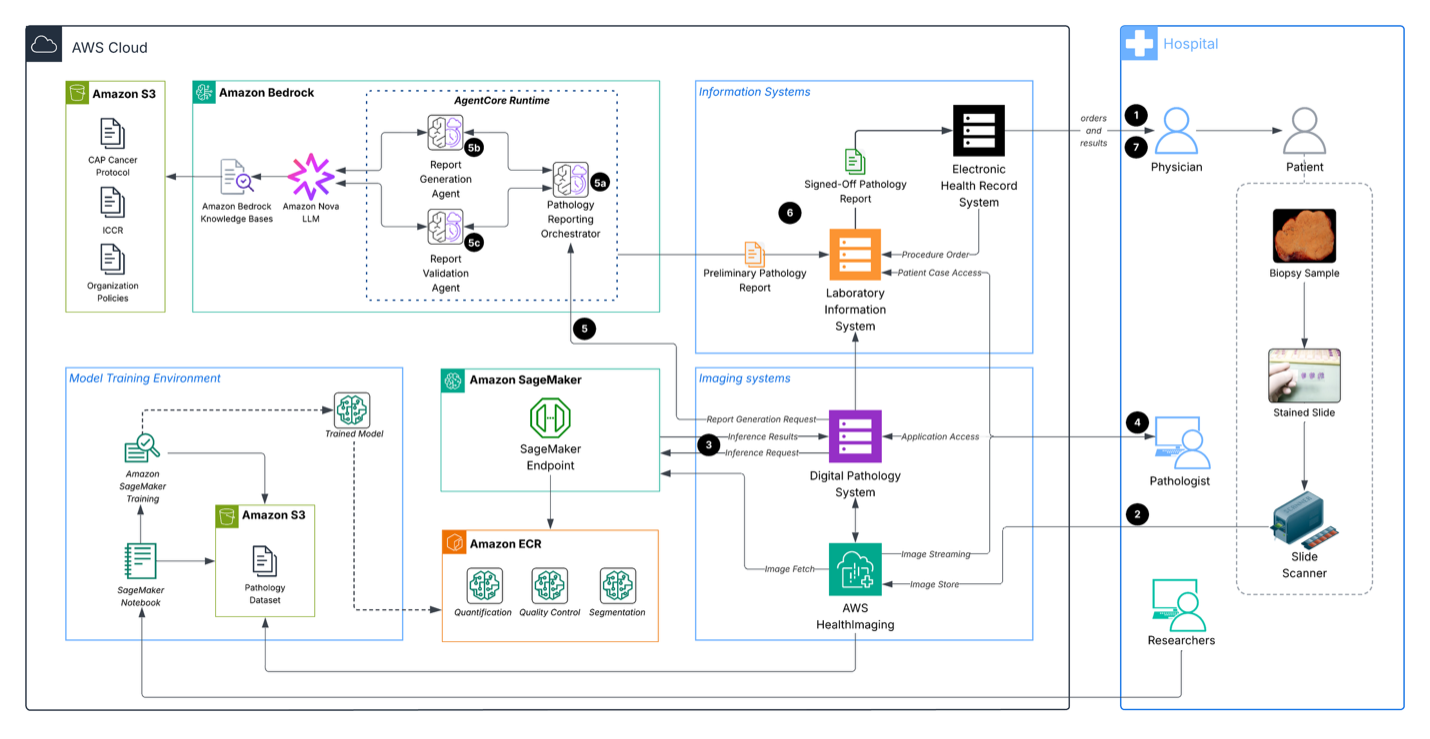

The AWS digital pathology architecture is one of the clearest recent examples of a healthcare AI system that refuses to hide the review loop. Slides are digitized, stored and streamed through AWS HealthImaging, model training and inference run through SageMaker, and report generation plus validation happen through Bedrock AgentCore agents, but the pathologist still reviews results and remains responsible for the final report.
That makes this diagram especially useful for beginners because it shows why healthcare AI is rarely one model endpoint. It is a coordinated system of scanners, imaging archives, viewers, inference services, pathology systems, laboratory information systems, report agents, and human sign-off.
Why the pathology blueprint is architecturally rich
| Stage | Architectural point |
|---|---|
| HealthImaging storage and streaming | Whole-slide images remain in an imaging-native system rather than being flattened into generic blobs |
| SageMaker training and endpoints | Training and inference are explicit ML stages with separate datasets, endpoints, and reusable models |
| Bedrock reporting agents | Narrative generation and validation are distinct from image inference and can apply report-specific policy |
| Pathologist review | Clinical authority stays with the human reviewer instead of moving directly from model output into the record |
Revolutionizing healthcare with AI-driven digital pathology
Official AWS healthcare blog that walks through slide storage, SageMaker inference, Bedrock agent reporting, and pathologist review.
Read the digital pathology architectureAWS HealthImaging overview
Specific AWS documentation for the imaging service boundary that underpins the pathology workflow.
Review HealthImaging mechanicsChoose the blueprint by dominant workflow, then make the human gate explicit
The common failure mode across these solution families is choosing services first and governance second. A stronger approach is to identify the dominant workflow and contract first, then decide how data products, AI services, and human review fit that path. Member-360 intelligence is a federated data-product problem. Patient summarization is an async retrieval and generation problem. Digital pathology is an imaging and inference problem with a report-validation stage on top.
Selecting the right AWS healthcare AI blueprint
Loading diagram...
- Start with the dominant workflow and modality instead of treating every healthcare AI problem as a generic RAG stack.
- Keep the data-product boundary visible so producers, consumers, and governance owners are explicit.
- Separate inference from report generation or app delivery when those stages have different safety expectations.
- Make the human gate a first-class architecture decision, not a soft policy note added after deployment.
